HP Designjet Z6100 Printer series

Window Position Sensor 289
Removal & Installation
Window Position Sensor
Removal
1. Remove the Window:
• For the 42-inch ⇒ See page 260.
• For the 60-inch ⇒ See page 262.
2. Remove the Top Cover:
• For the 42-inch ⇒ See page 273.
• For the 60-inch ⇒ See page 277.
3. Remove the Right Cover ⇒ See page 264 .
4. Remove the Right Connector Cover ⇒ See page 285.

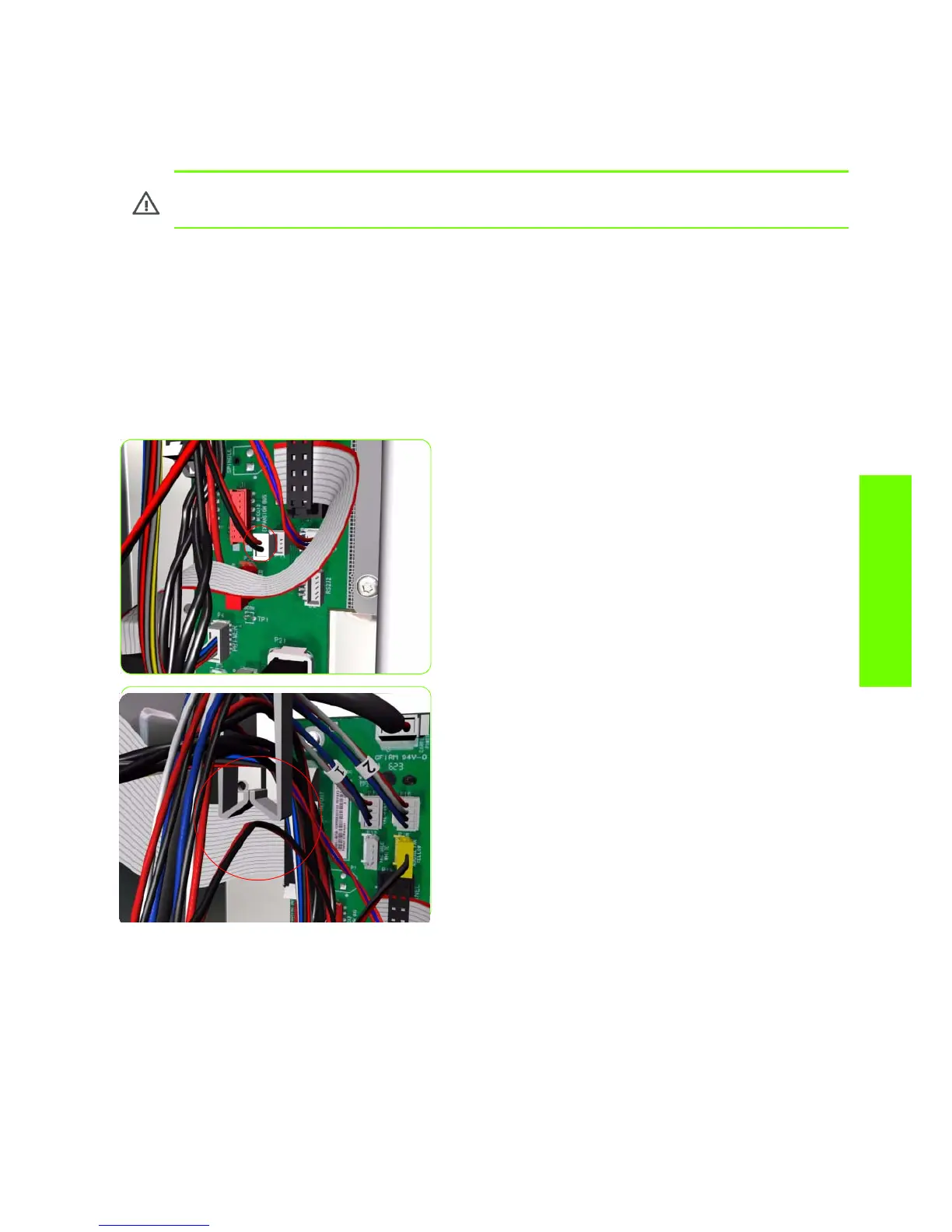

5. Disconnect the Window Position Sensor cable from the
Interconnect PCA.
6. Unroute the Window Position Sensor cables from the
from cable clamp.
WARNING!: Switch off the printer and remove the power cable.
