290 Chapter 8 Removal & Installation
Removal & Installation

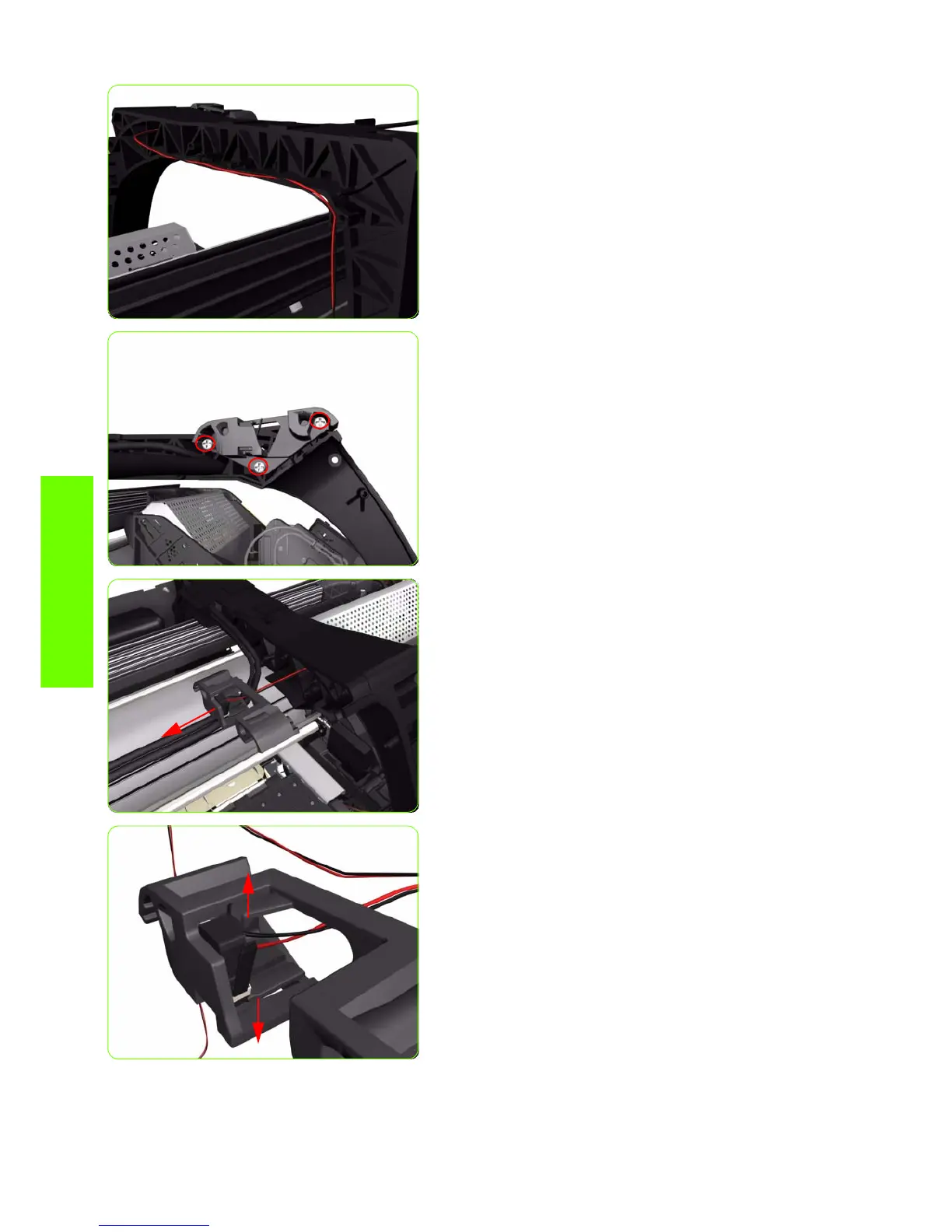

7. Unroute the Window Position Sensor cables from the
Right Arc.
8. Remove three T-15 screws (Type J) that secure the
Window Position Sensor Holder to the Right Arc.
9. Remove the Window Position Sensor Holder from the
printer.
10. Release the two clips of the Window Position Sensor
Holder.
To Next Page
