304 Chapter 8 Removal & Installation
Removal & Installation
Vacuum Fan
Removal
1. Remove the Right Cover
⇒
See page 264
.
2. Remove the Right Connector Cover
⇒
See page 285.
3. Remove the Primer Assembly
⇒
See page 294.
4. Remove the Primer Valves
⇒
See page 296.
5. Remove the Maintenance Cartridge
⇒
See the User’s
Guide.
6. Remove the Service Station
⇒
See page 300.

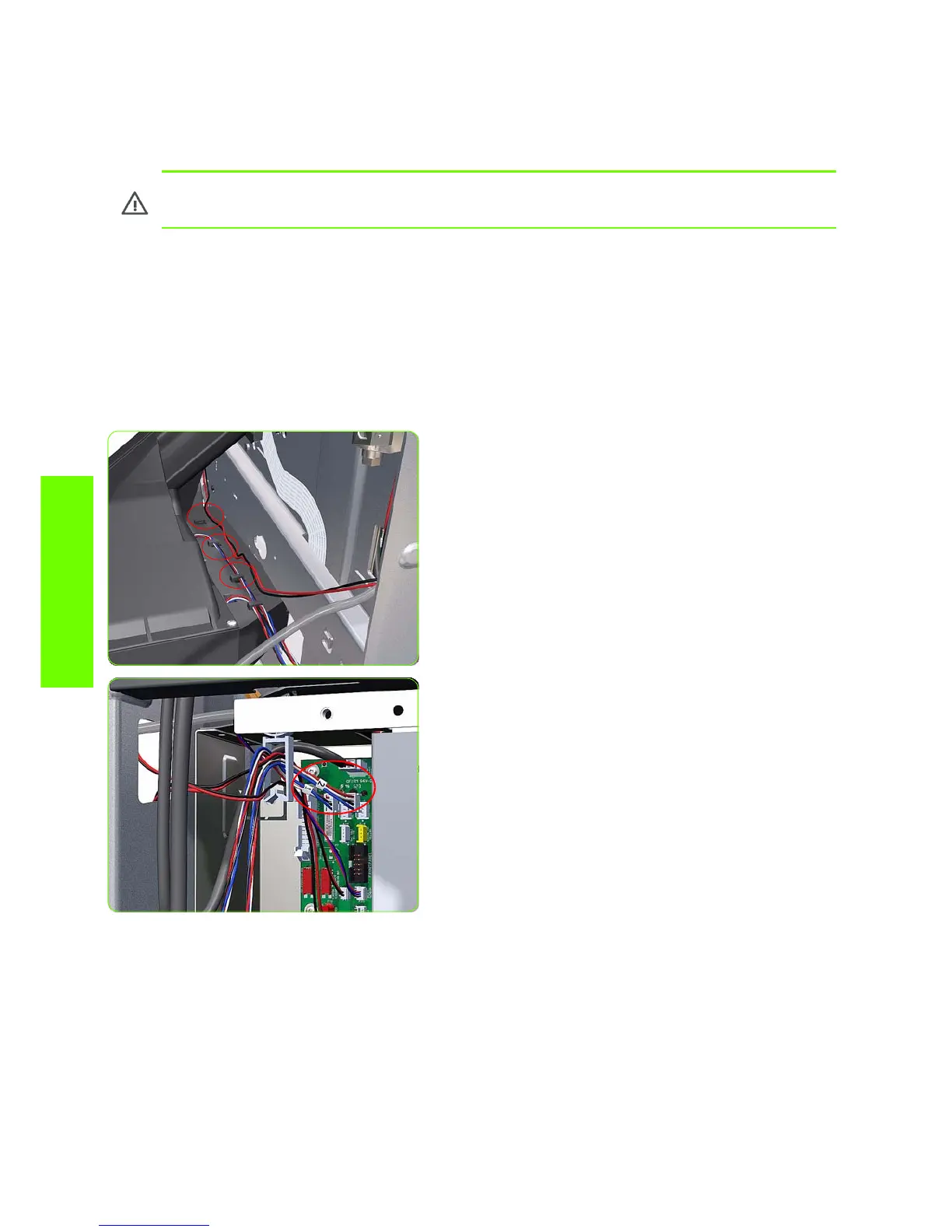

7. Release the Pinchwheel Lever Sensor Cable from the
Vacuum Fan.
8. Disconnect both Vacuum Fan cables (identified 1 and
2) from the Interconnect PCA.
WARNING!: Switch off the printer and remove the power cable.
To Next Page
