Ink Supply Tubes and Trailing Cable 315
Removal & Installation

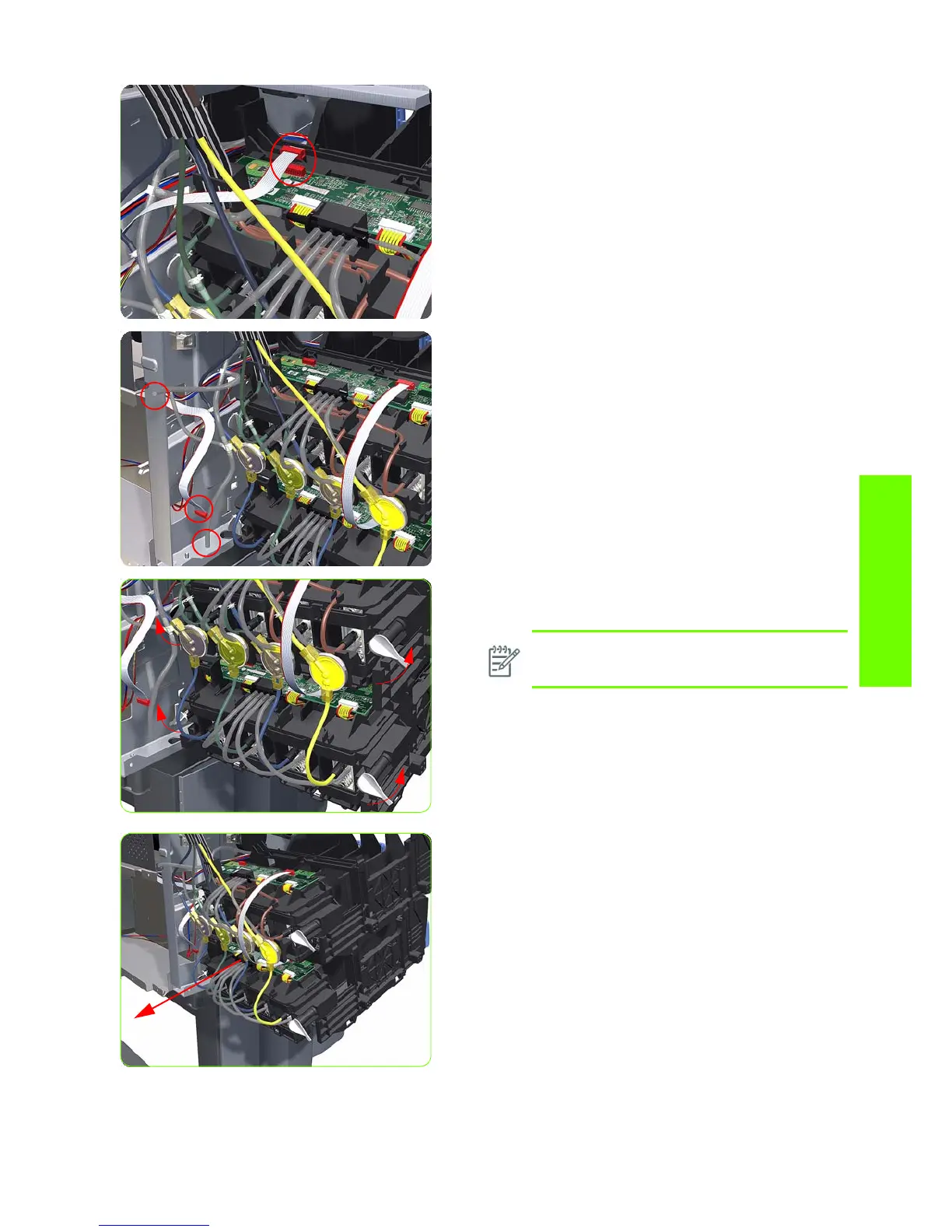

17. Disconnect the Electrical Cable from the rear of the Ink
Cartridge Tube Connector.
18 . Unroute the Electrical Cable and Air Tubes from the
rear of the Ink Cartridge Tube Connector.
19. Twist the four latches at the rear of the Ink Cartridge
Tube Connector and release the complete assembly.
20.Carefully slide the Ink Cartridge Tube Connector off the
Ink Supply Station.
NOTE: Be careful not to damage the inter-
connecting cable.
To Next Page
