Encoder Strip and Encoder Sensor 333
Removal & Installation

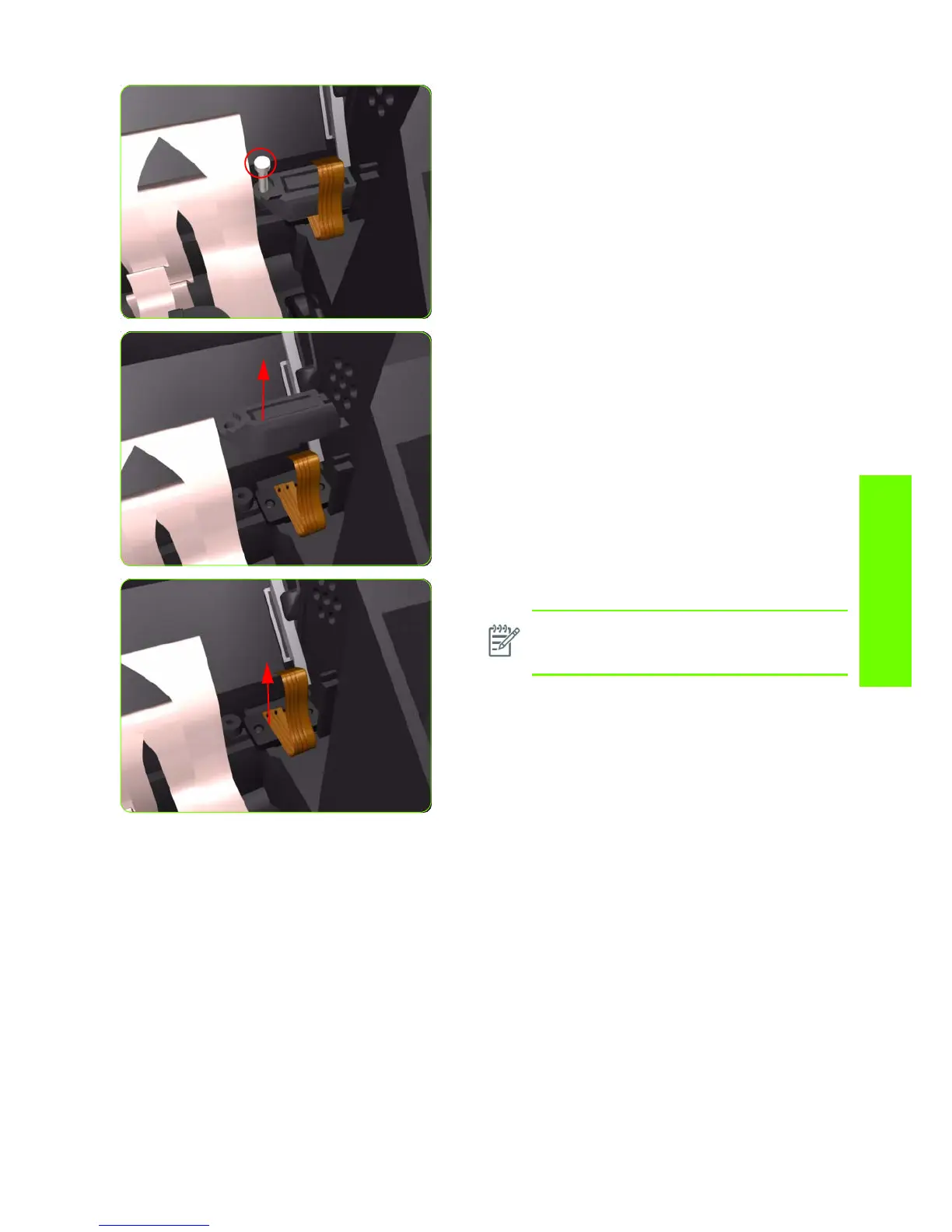

11. Remove one T-8 (Type L) screw that secures the
Encoder Sensor to the Carriage Assembly.
12. Remove the plastic cover from the Encoder Sensor.
13 . Remove the Encoder Sensor from the Printer.
• Scan-Axis Calibration
⇒
Chapter 5.
NOTE: After installing the NEW Encoder
Strip and Encoder Sensor, make sure you
perform the following Service Calibration:
