Interconnect PCA 357
Removal & Installation
Interconnect PCA
Removal
1. Remove the Right Connector Cover ⇒ See page 285 .
2. Remove the JetDirect Card (if installed).

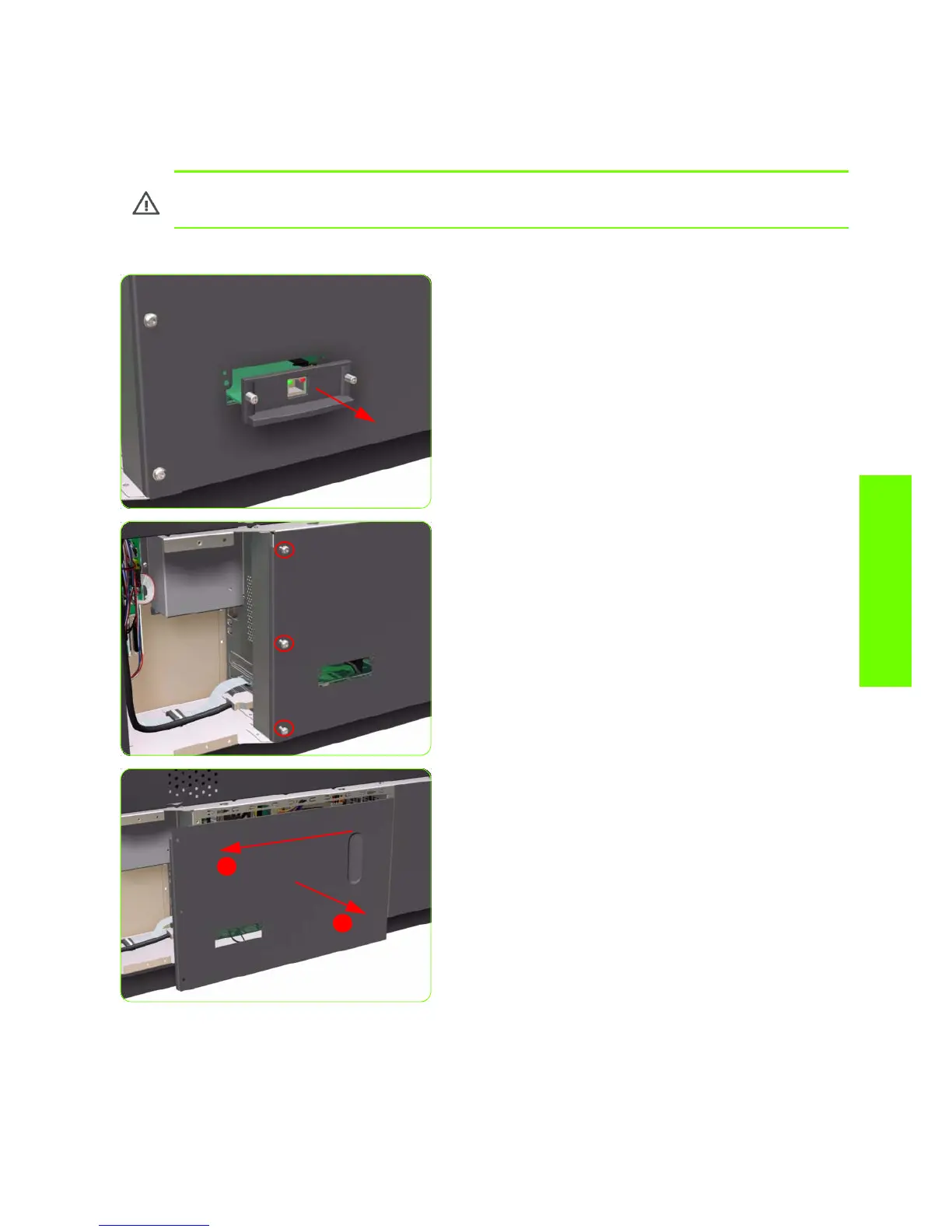

3. Remove three T-15 screws (Type A) that secure the
Main PCA cover.
4. Remove the Main PCA Cover from the Printer.
WARNING!: Switch off the printer and remove the power cable.
1
2
