Line Sensor Assembly
Removal
1. Remove the Right Cover
⇒
See page 264
.

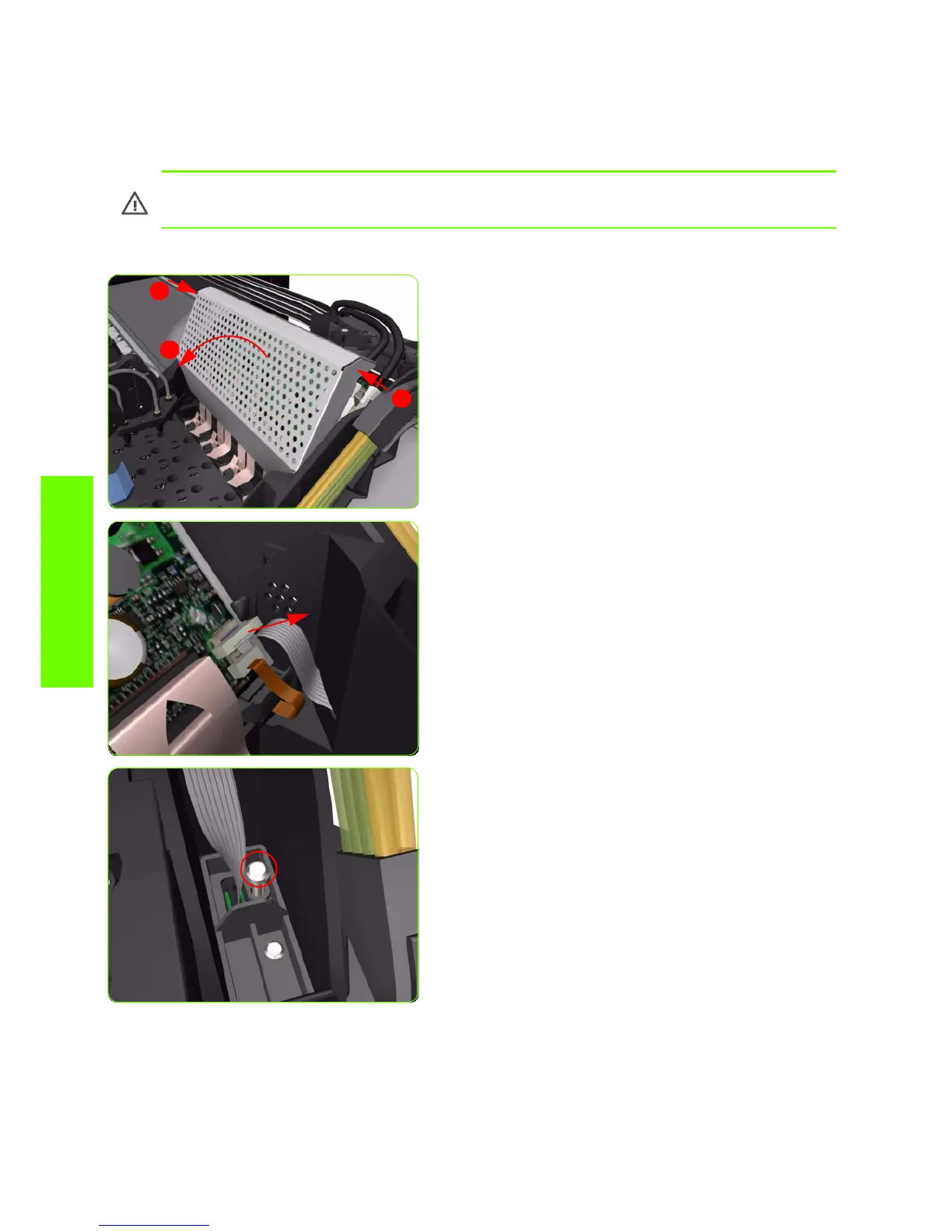

2. Press the two side of the Carriage PCA Cover and
unclip from the Carriage Assembly.
3. Release the clip and disconnect the Line Sensor cable
from the Carriage PCA.
4. Remove one T-15 screw (Type G) that secures the Line
Sensor to the carriage Assembly.
WARNING!: Switch off the printer and remove the power cable.
