392 Chapter 8 Removal & Installation
Removal & Installation
Color Sensor Assembly
Removal
1. Open the Window.
2. Remove the Right Cover
⇒
See page 264
.
3. Remove the Left Cover
⇒
See page 270
.

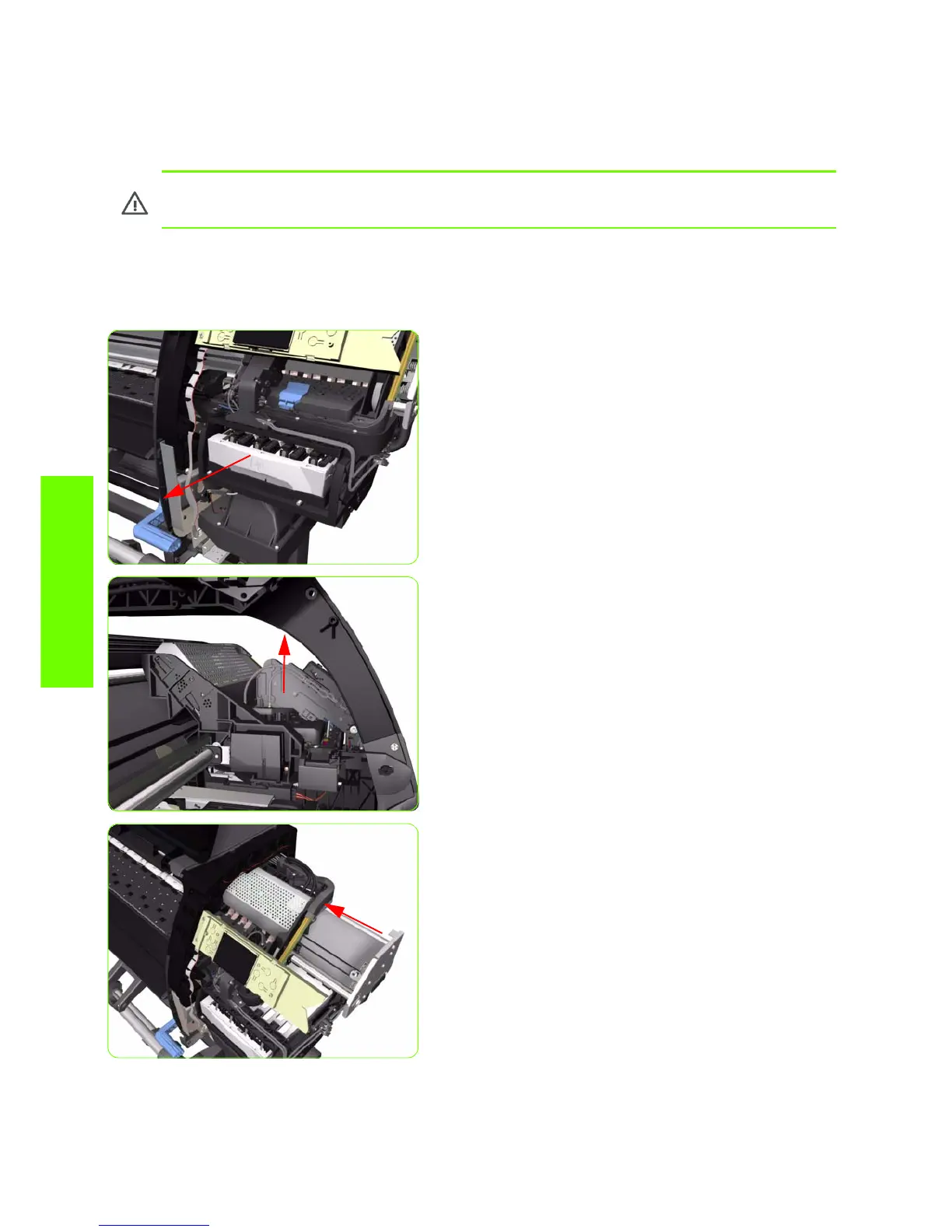

4. Uncap the Carriage Assembly by manually pulling out
the Printhead Maintenance Cartridges tray.
5. Lift the Primer and hold the Primer to its maximum
position to avoid damaging it when you move the
Carriage Assembly in the next step.
6. Move the Carriage Assembly out of the Service Station.
WARNING!: Switch off the printer and remove the power cable.
