HP Designjet Z6100 Printer series

Media Lever Assembly 421
Removal & Installation

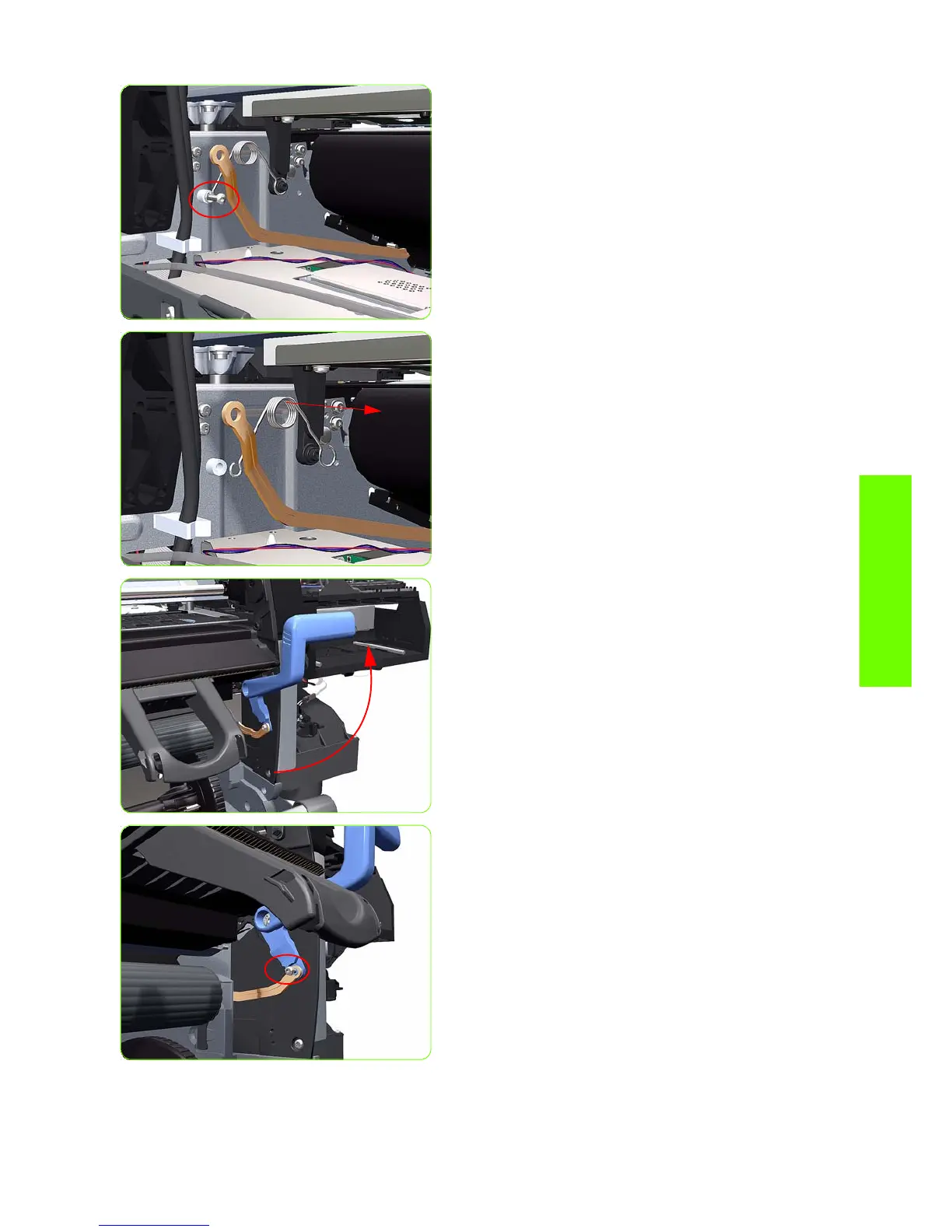

6. Remove one T-20 screw (Type A) that secures the
Spring to the Spacer.
7. Remove the Spring and plastic washer.
8. Raise the Media Lever to gain access to the linkage
attachment screw.
9. Remove one T-15 screw (Type F) that secures the
Media Lever to the Linkage.
