HP Designjet Z6100 Printer series

422 Chapter 8 Removal & Installation
Removal & Installation

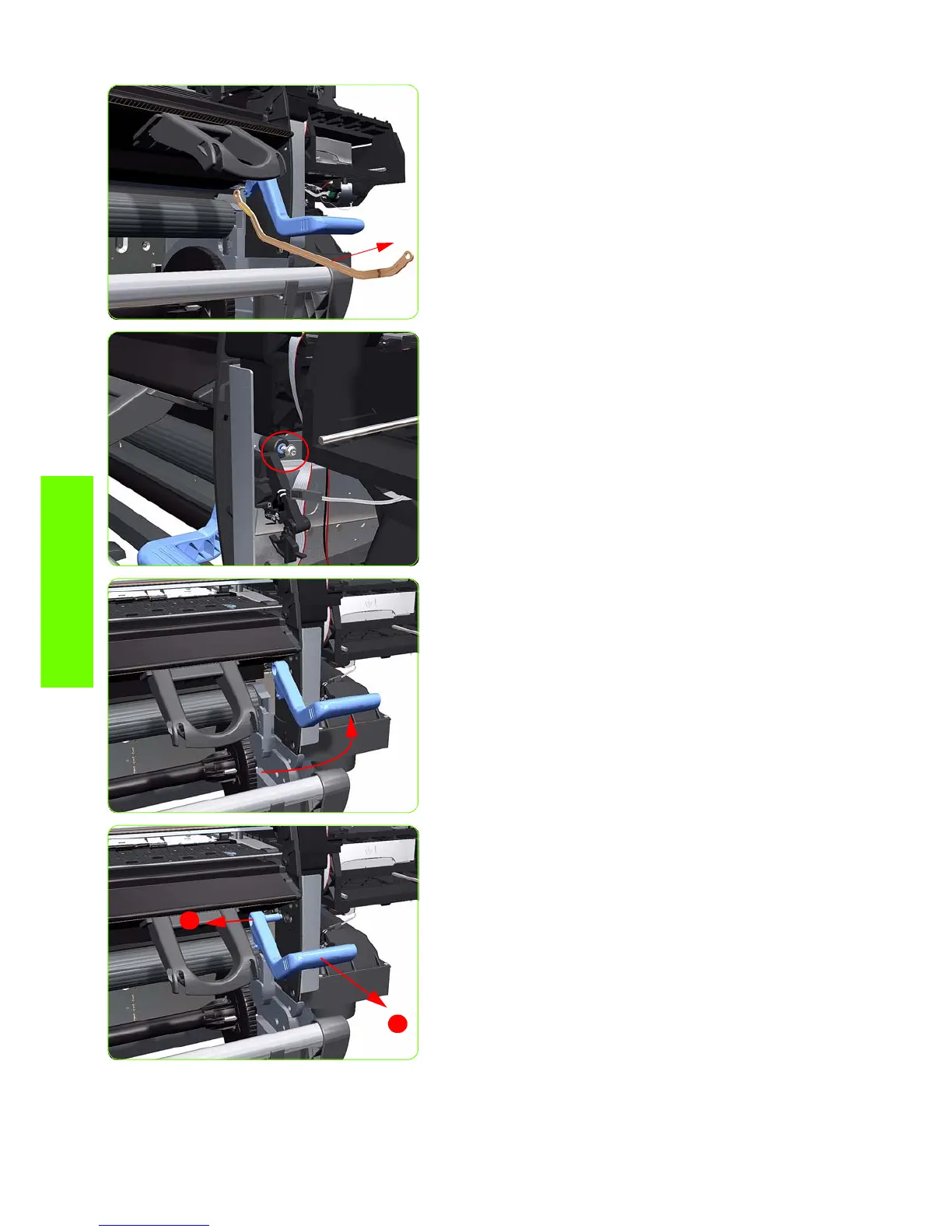

10. Remove the Media Lever Linkage from the Printer.
11. Remove one T-20 screw (Type O) that secures the
Media Lever to the Right Trim.
12. Raise the Media Lever.
13 . Remove the Media Lever from the Printer.
1
2
