Media Lever Sensor 423
Removal & Installation
Media Lever Sensor
Removal
1. Remove the Right Cover
⇒
See page 264
.
2. Remove the Right Trim
⇒
See page 267.
3. Remove the Right Connector Cover
⇒
See page 281.
4. Remove the Output Platen
⇒
See page 398.

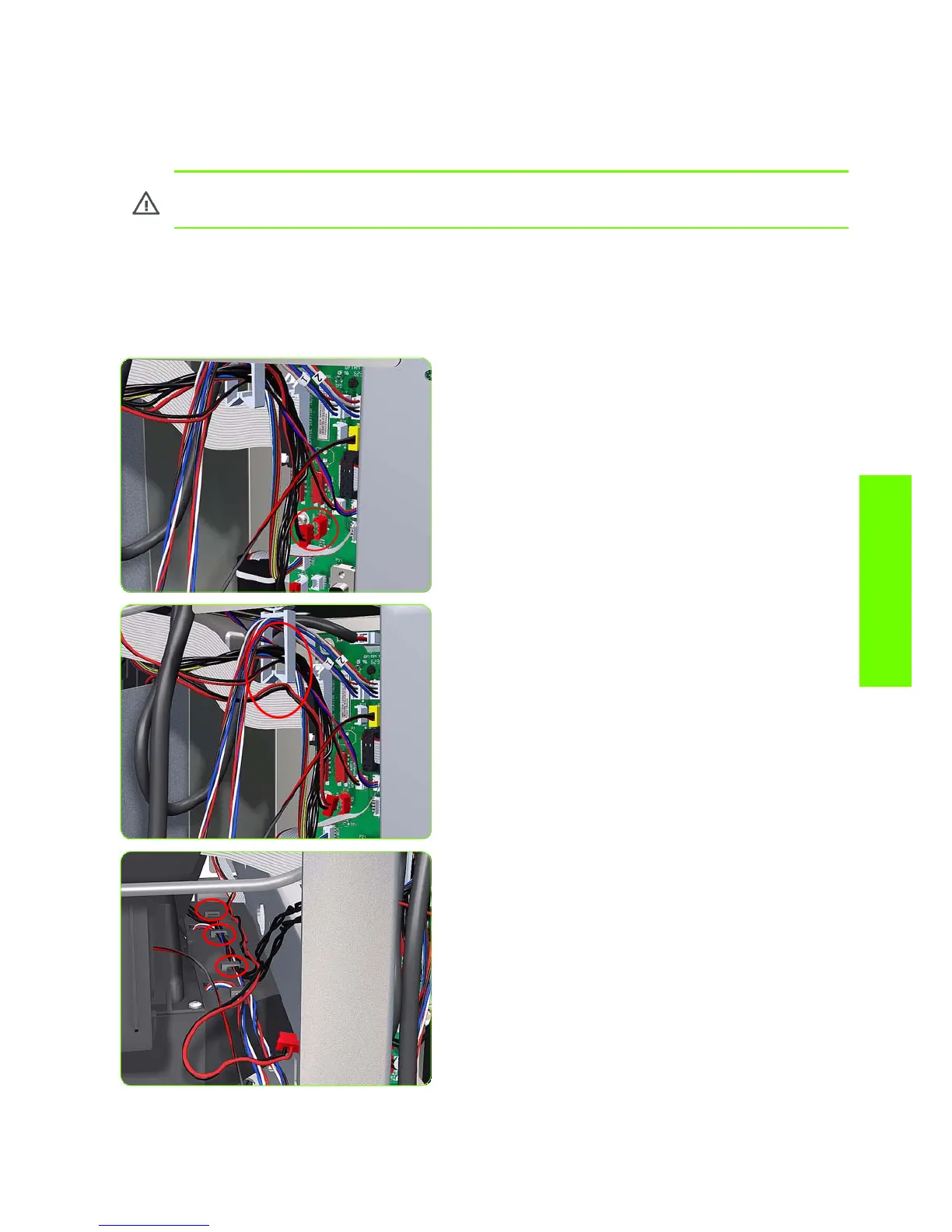

5. Disconnect the Media Lever Sensor cable from the
Interconnect PCA.
6. Unroute the Media Lever Sensor cable from the cable
clamp.
7. Release the Media Lever Sensor Cable from the three
clips on the Vacuum Fan.
WARNING!: Switch off the printer and remove the power cable.
To Next Page
