Drive Roller 435
Removal & Installation

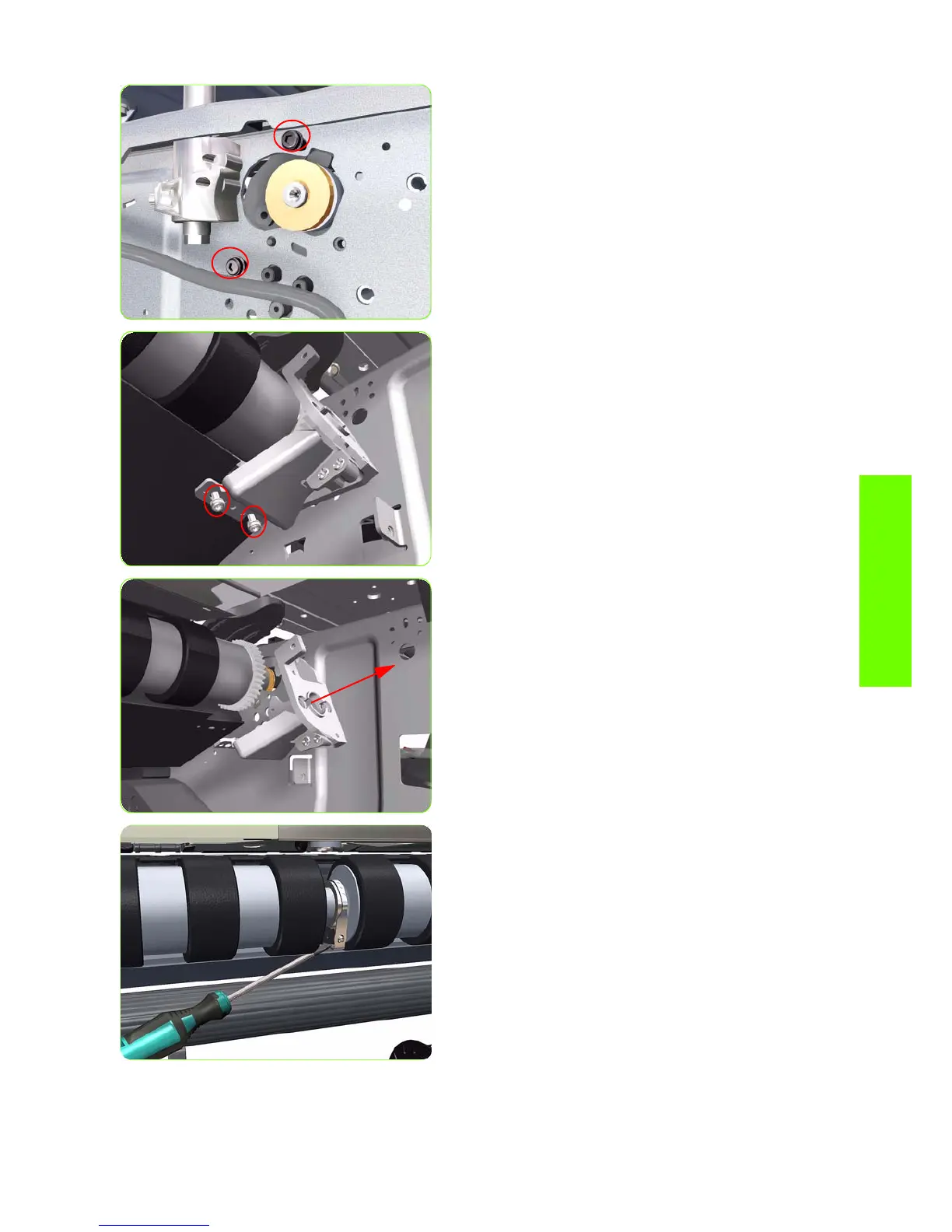

18 . Remove T-20 screws that secure the Media-Axis Motor
Bracket to the side-plate.
19. Remove two T-20 screws (Type A) that secure the
Media-Axis Motor Bracket to the Chassis.
20.Remove the Media-Axis Motor Bracket from the Printer.
21. For the 60-inch model, use a flat bladed screwdriver to
unclip the Roller Middle Support Cover.
