440 Chapter 8 Removal & Installation
Removal & Installation
Left Rollfeed Module Assembly
Removal
1. Remove the Left Cover
⇒
See page 270
.
2. Remove the Ink Supply Station
⇒
See page 321.
3. Remove the Input Roller
⇒
See page 411.
4. Remove the APS Assembly
⇒
See page 324.
5. Remove the Left Spittoon
⇒
See page 328.
6. Remove the Media Spindle (if installed).

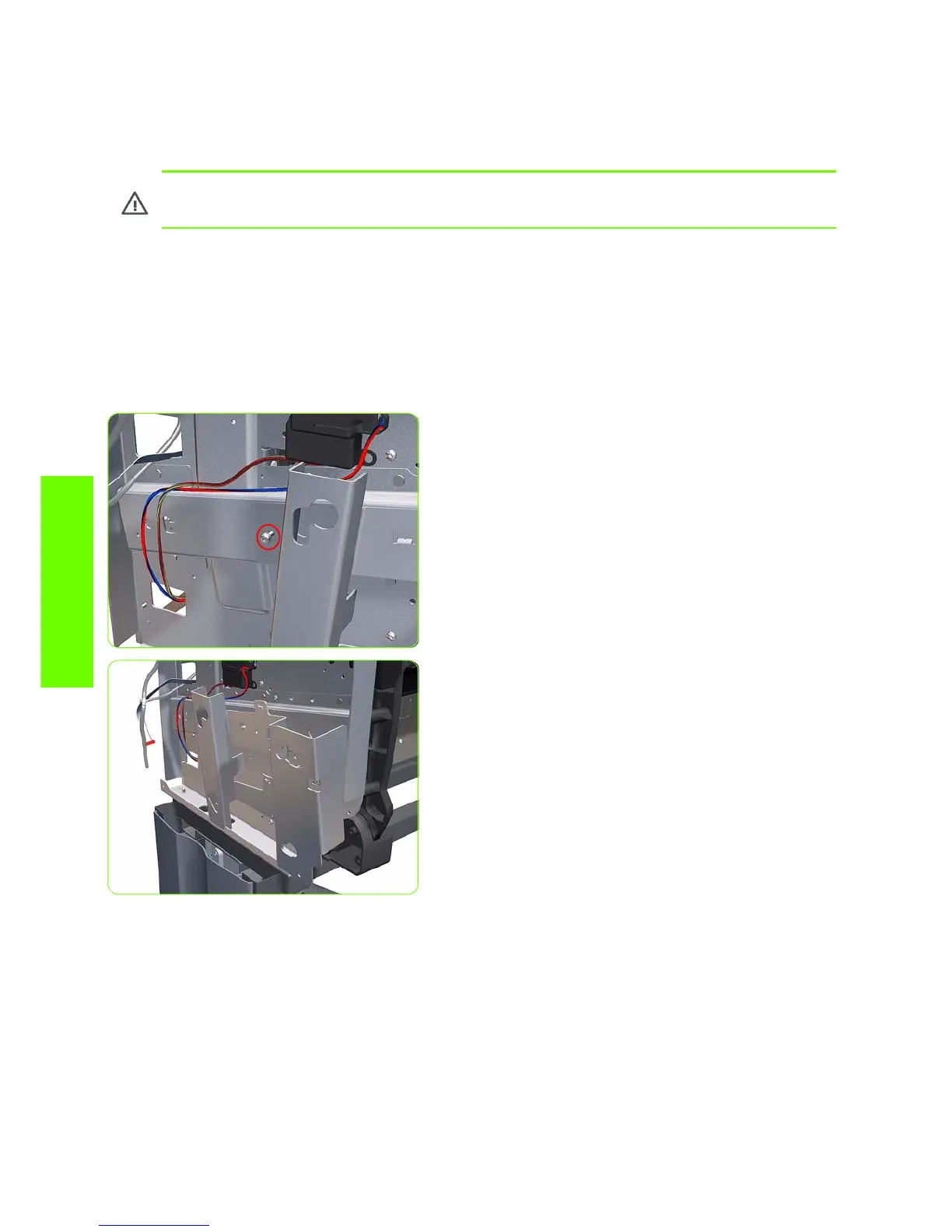

7. Remove one T-15 screw that secures the APS Mounting
Plate to the Printer.
8. Tilt out the top of the APS Mounting Plate support.
WARNING!: Switch off the printer and remove the power cable.
