HP Designjet Z6200

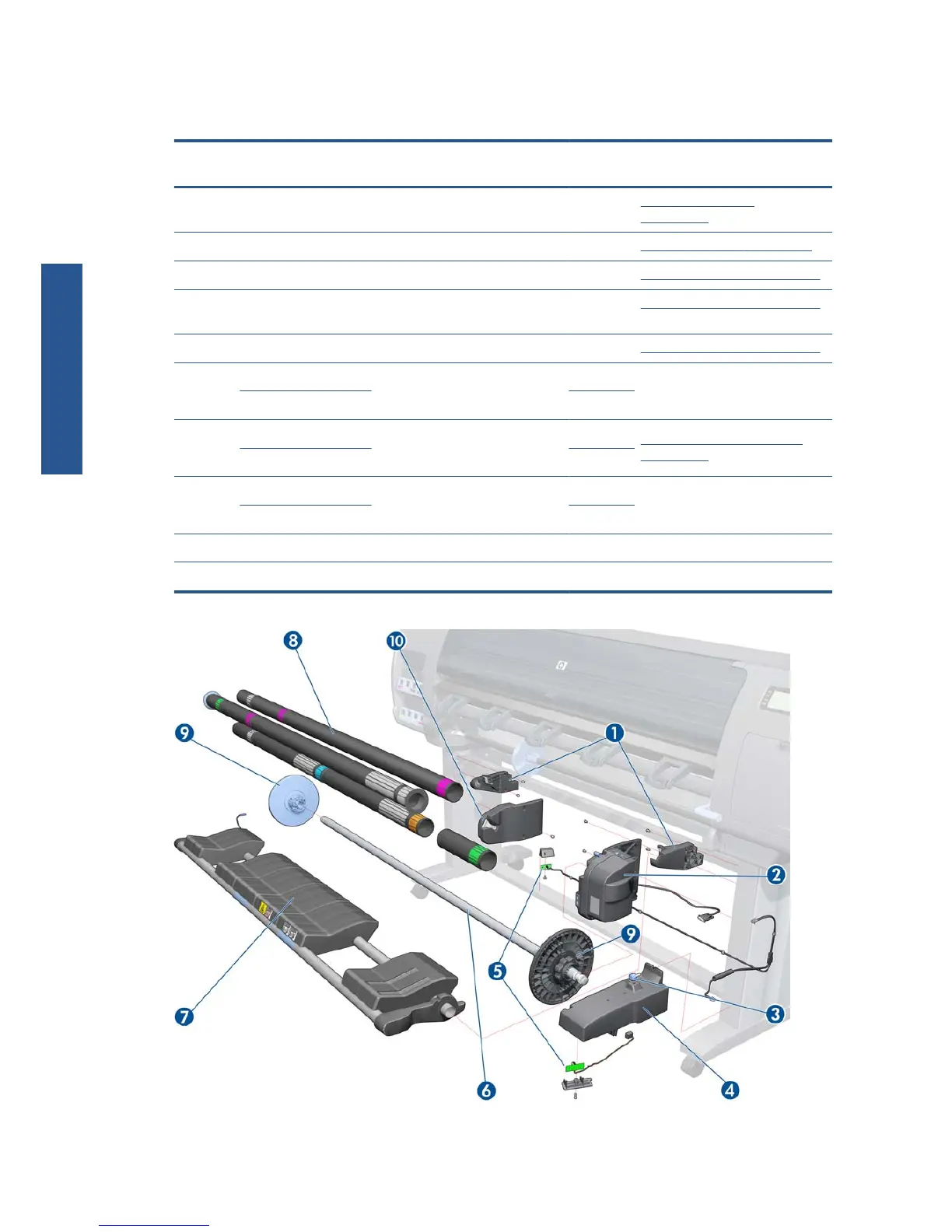

Take-Up Reel assembly
Number
in figure
HP part number Description Model Cross-reference
1
Q6706-60902 Take-Up Reel Deflector Support
Assembly
All
Right Roll-feed Module
on page 407
2 CQ109-67036 Take-Up Reel Motor All
Take-Up Reel Motor on page 409
3 Q6706-60910 Thumbscrew All
Take-Up Reel Sensors on page 414
4 CH955-67118 Take-Up Reel Receiver Sensor
Housing Assembly
All
Take-Up Reel Sensors on page 414
5 CH955-67117 Take-Up Reel Sensors Assembly All
Take-Up Reel Sensors on page 414
6
CH955-67033
Take-Up Reel Spindle Assembly with
Tubes, but not Spindle Hubs
42-inch
N/A
CH956-67012 60-inch
7
CH955-67082
Take-Up Reel Shelf
42-inch
Take-Up Reel Deflector Supports
on page 412
CH956-67032 60-inch
8
Q6706-60906
Take-Up Reel Tubes Assembly
42-inch
N/A
Q6652-60902 60-inch
9 Q6706-60901 Take-Up Reel Spindle Hubs All N/A
10 Q6706-60903 Take-Up Reel Left-hand Module All
