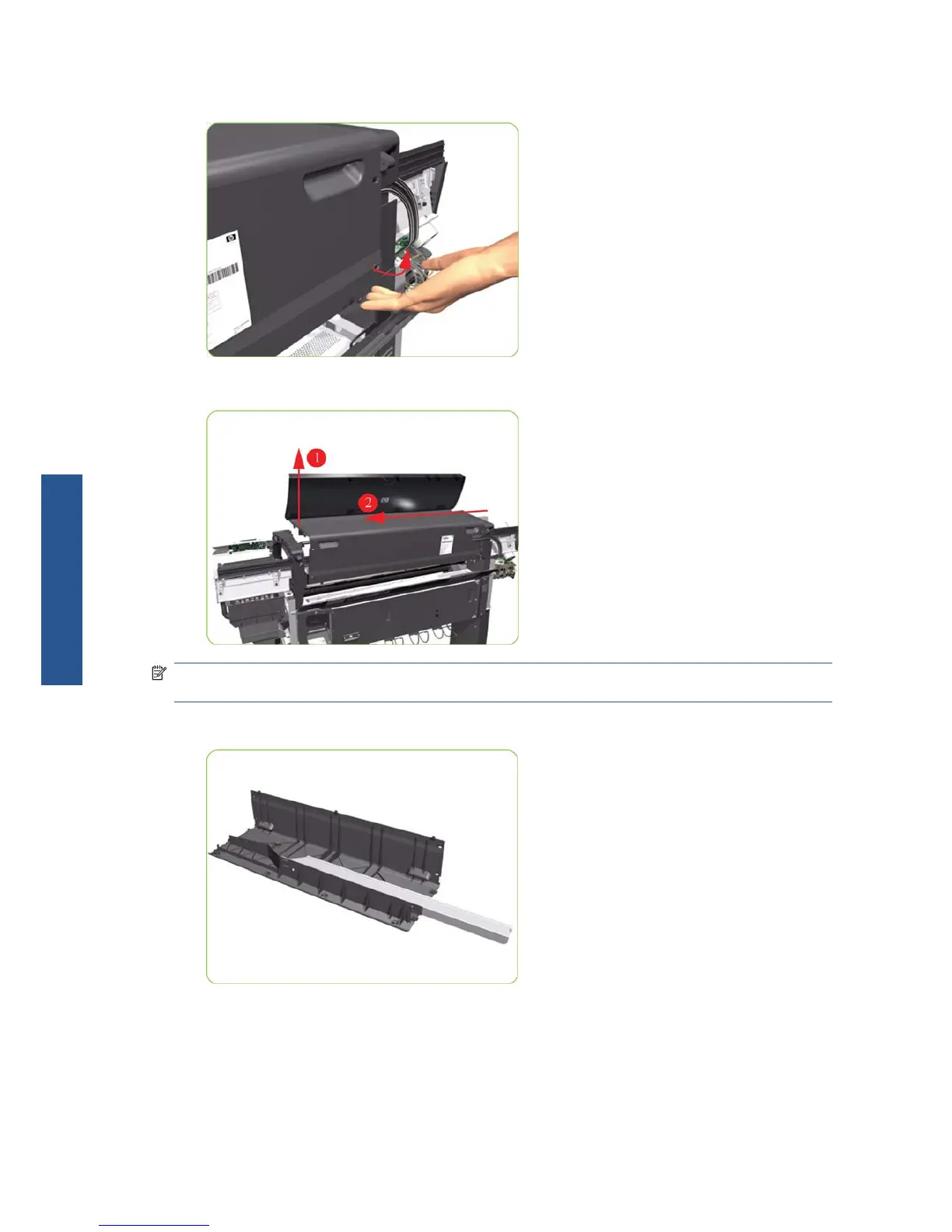

12. Release the Top Cover from the rear of the printer.
13. Raise the right-hand side of the Top Cover and pull out to the right.
NOTE: If a NEW Top Cover is to be installed, take note of the following instructions before
assembling the Top Cover on to the printer:
1. Position the Metallic Support on to the Top Cover.
228 Chapter 8 Removal and installation ENWW
