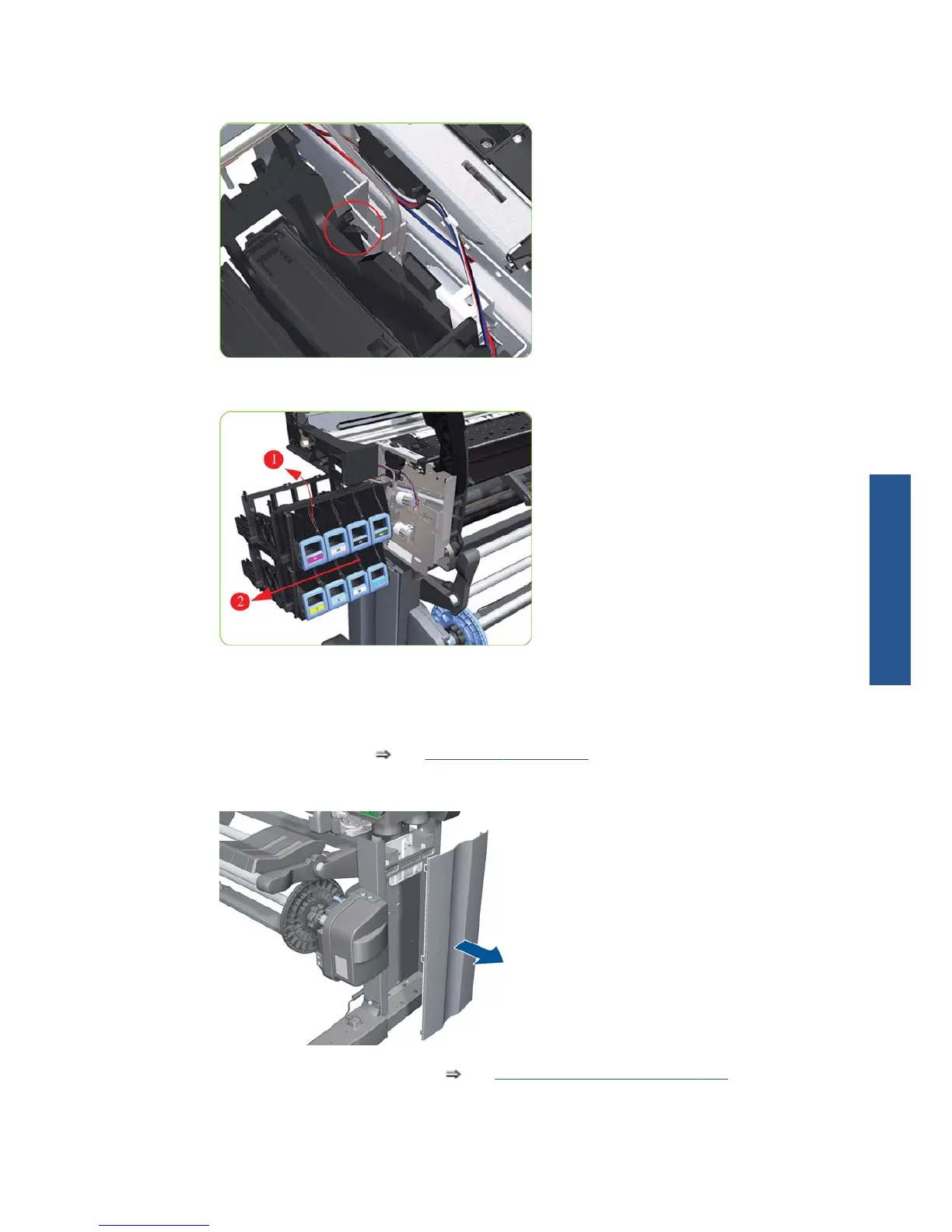

15. Unhook Ink Supply Station cables from the printer.
16. Remove the complete Ink Supply Station (upper and lower assemblies) from the printer.
Rewinder Motor
Removal
1. Remove the Right Cover
See Right Cover on page 216.
2. Remove the Right Leg Cover.
3. Remove the Right Connector Cover See Right Connector Cover on page 238.
ENWW
Disassembly order
281
Removal and
installation
