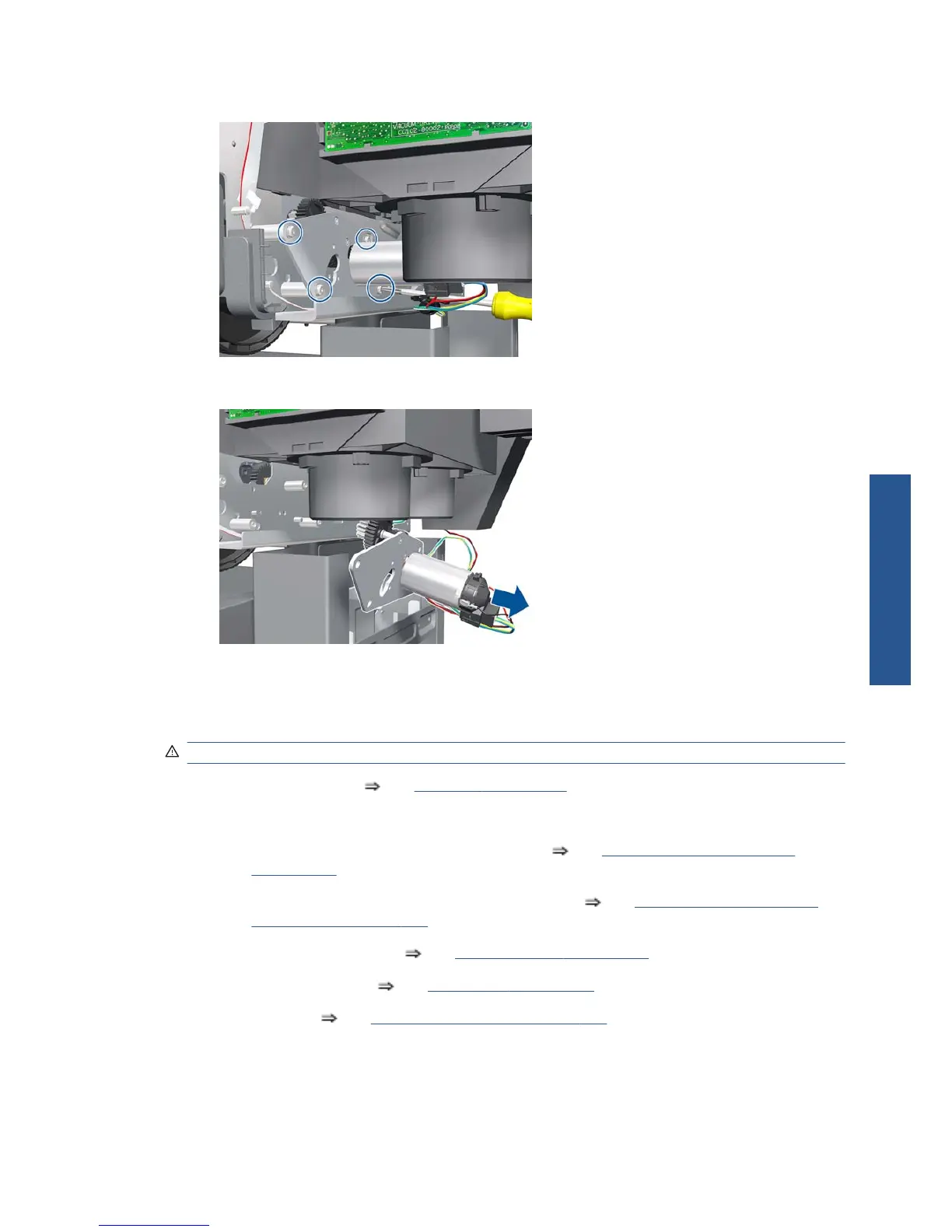

7. Remove four T-20 screws from the Rewinder Motor.
8. Remove the Rewinder Motor.
APS Assembly
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Left Cover See Left Cover on page 222.
2. Remove:
●
The Left Connector Cover or the 42-inch model
See Left Connector Cover (42-inch)
on page 240.
●
The Electronics Module Extension the 60-inch model
See Electronics Module Extension
(60-inch only) on page 241.
3. Remove the Scan-Axis Motor
See Scan-Axis Motor on page 308.
4. Remove the Left Spittoon
See Left Spittoon on page 289.
5. Remove the ISS
See Ink Supply Station (ISS) on page 276.
ENWW
Disassembly order
283
Removal and
installation
