24. For the 60-inch model, remove the Roller Middle Support Cover.
25. Remove the Drive Roller by sliding it to the right, then downwards and then out of the printer.
Installation of the Drive Roller
NOTE: When reinstalling the parts, make sure you apply the grease (included with the support part)
to the gears.
NOTE: After installing the new Drive Roller, make sure you perform paper-advance calibration
Paper-advance calibration on page 127.

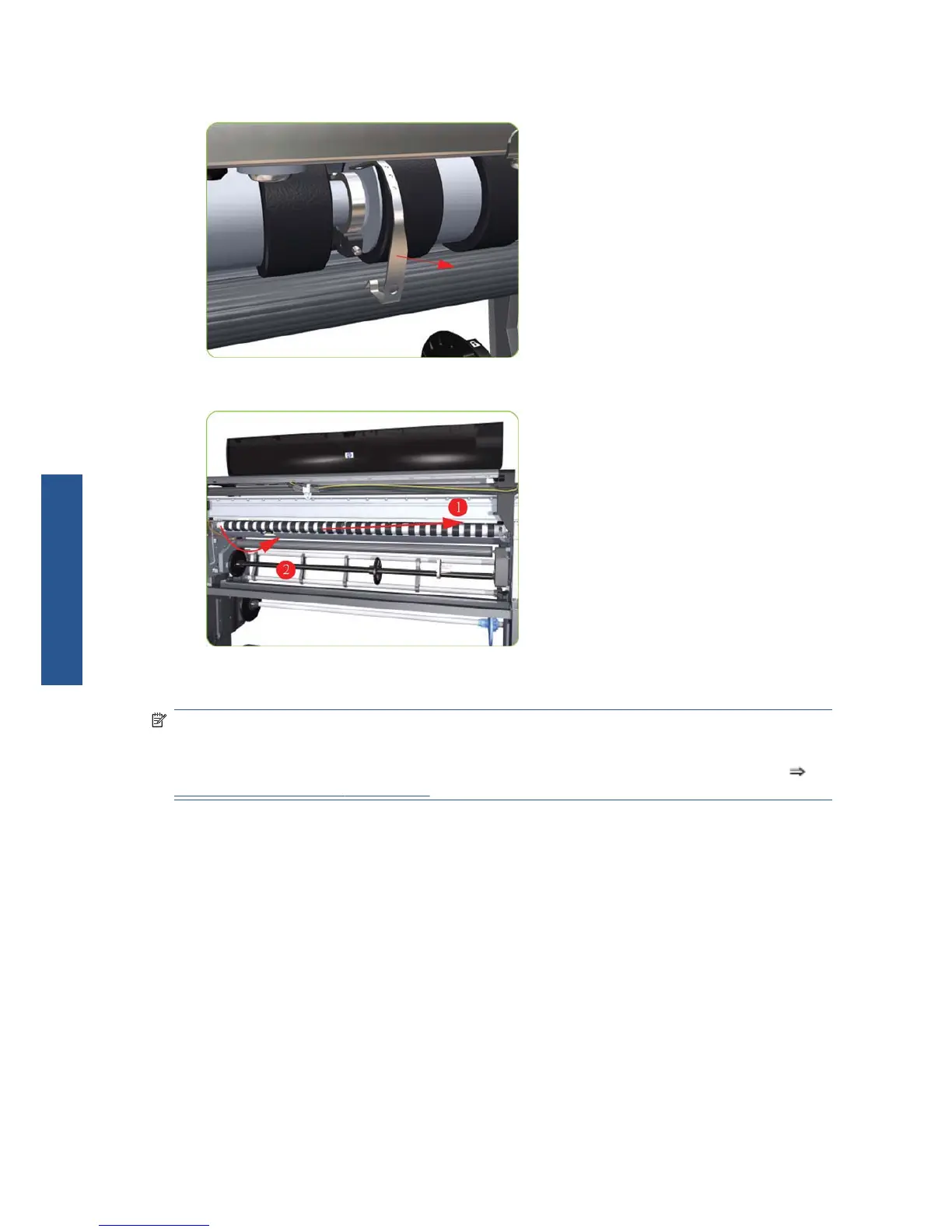

When installing the Drive Roller, several different datums have to be met in order to ensure that the
Drive Roller has no axial play. Use the following illustrations to ensure that ALL the datums are met:
