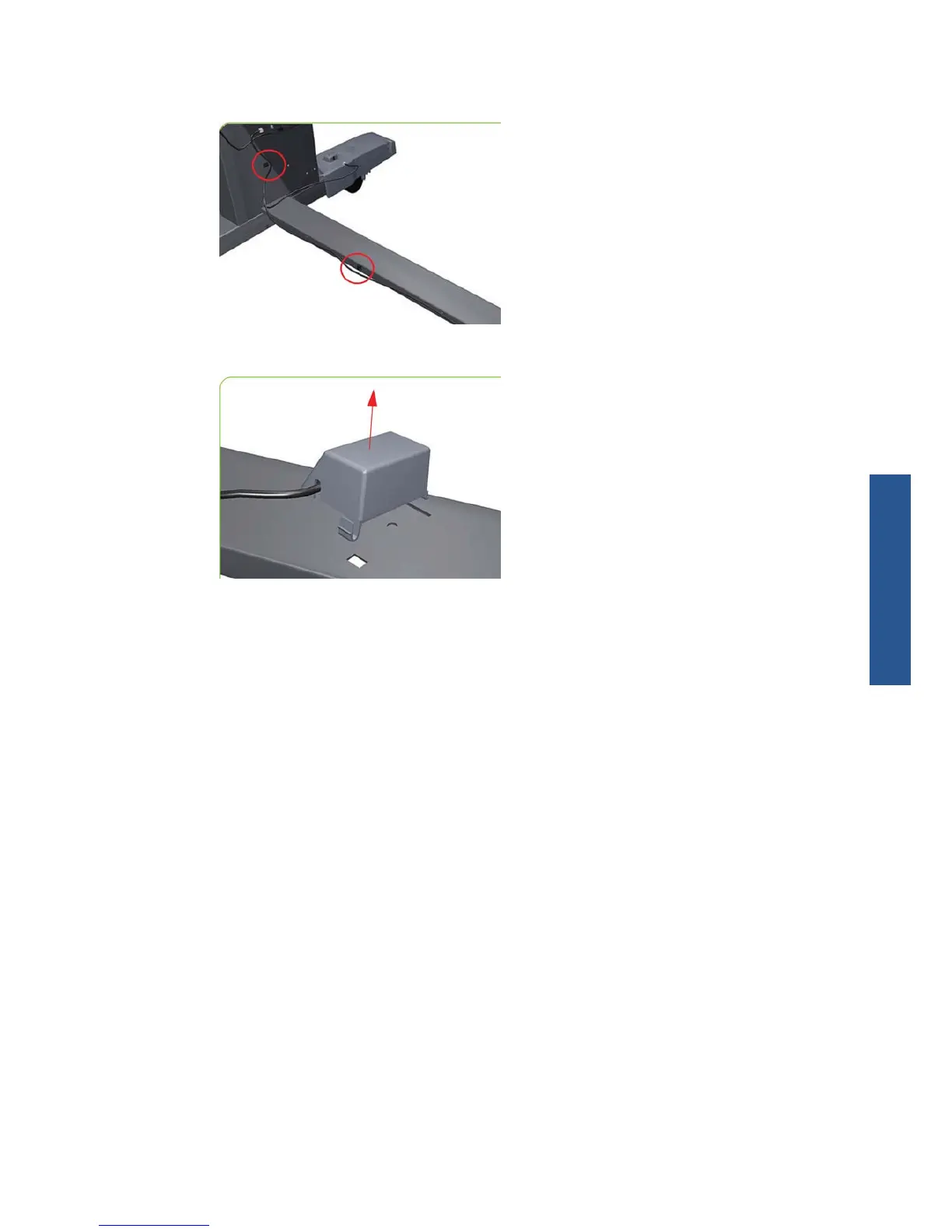

9. Unroute the Take-Up Reel Transmitter Sensor cable.
10. Unrclip and remove the Take-Up Reel Transmitter Sensor from the X-Brace Assembly.
ENWW
Disassembly order
417
Removal and
installation
