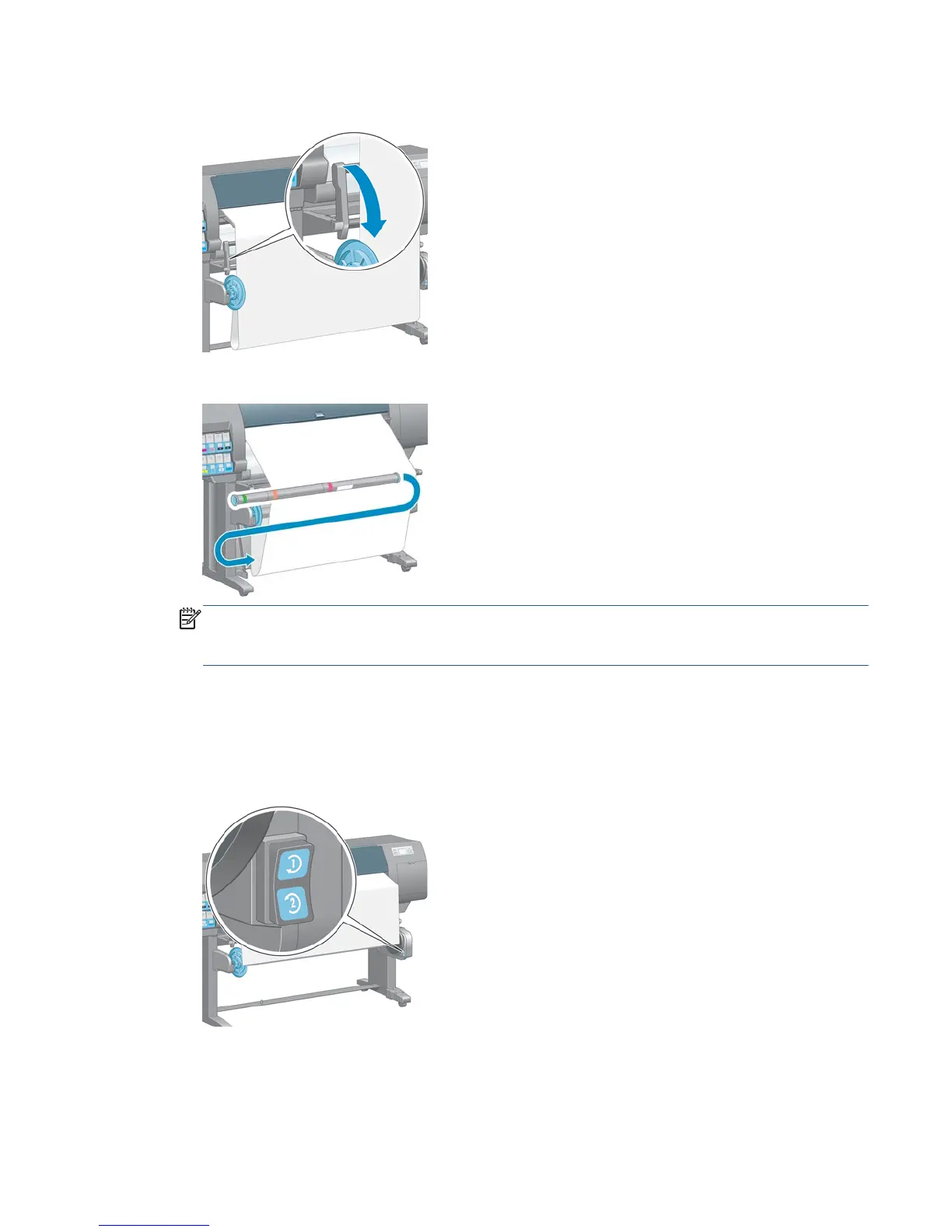

11. Gently lower the loading table.
12. Carefully insert the loop-shaping core.
NOTE: Make sure that you insert the loop-shaping core. The take-up reel will not function correctly
without it. The loop-shaping core must have end caps. Make sure that the end caps extend over the
edges of the paper.
13. Use the wind-direction switch on the take-up reel motor to select the winding direction. Setting 1 winds
the paper so that the printed image faces in. Setting 2 winds the paper so that the printed image faces
out.
The front panel shows you to the correct setting based on the winding-direction decision you made in
step 7.
14. Press the OK key on the front panel. The Take-up reel has been successfully installed message
appears.
ENWW Use the take-up reel 39
