HP DL120

Hardware options installation 33
4.

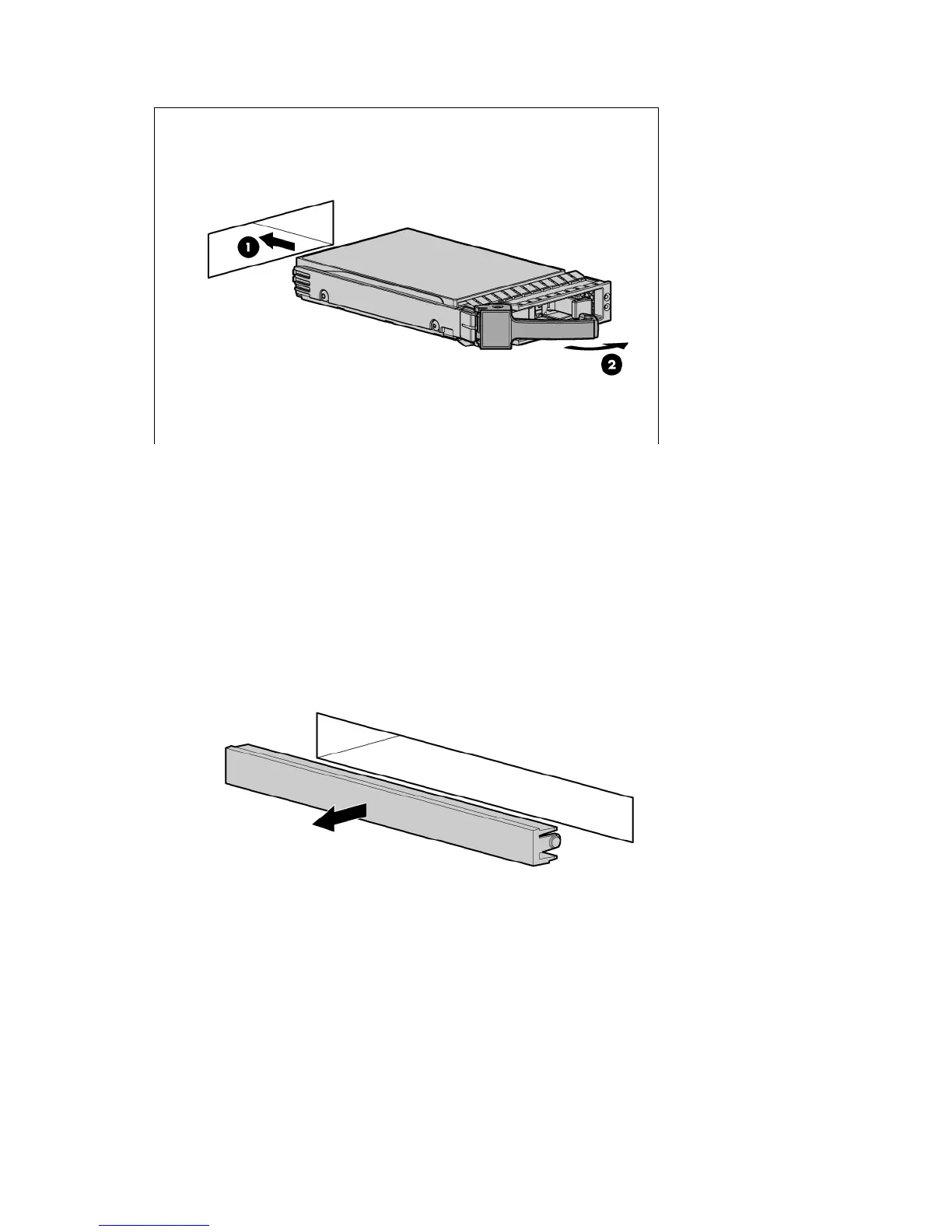

Install the hard drive.
Optical drive option
To install the component:
1. Power down the server (on page 17).
2. Remove the server from the rack ("Removing the server from the rack" on page 17).
3. Remove the access panel ("Removing the access panel" on page 18).
4. Remove the air baffle ("Removing the air baffle" on page 19).
5. Remove the 9.5-mm optical drive blank. Retain the blank for future use.
