Hardware options installation 34
6.

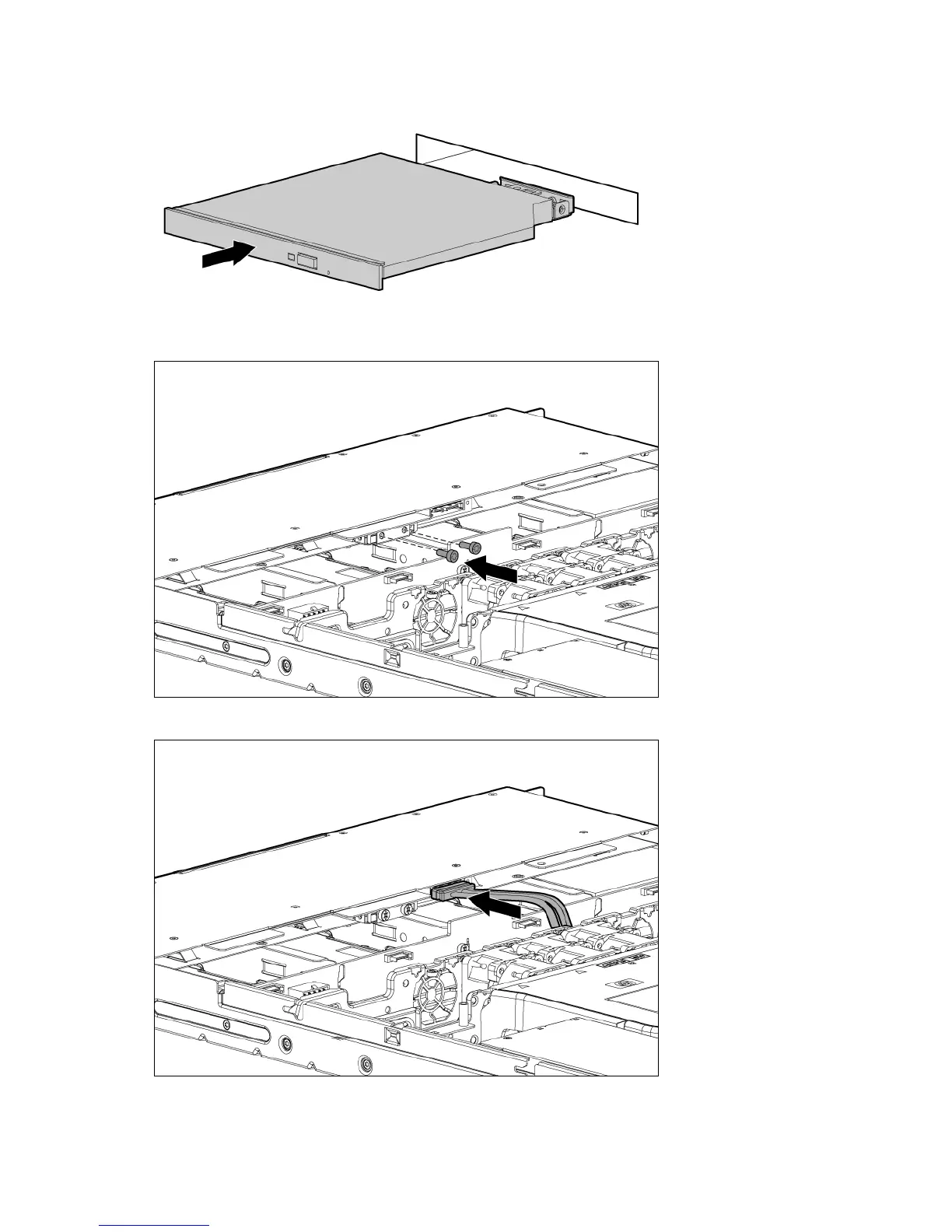

Install the 9.5-mm optical drive assembly. When fully inserted, the assembly locking latch clicks.
7. Using a T-15 Torx screwdriver, secure the drive to the chassis.
8. Connect the optical drive and power cable to the optical drive.
9. Connect the power connector to the power supply backplane.
