Component identification 8

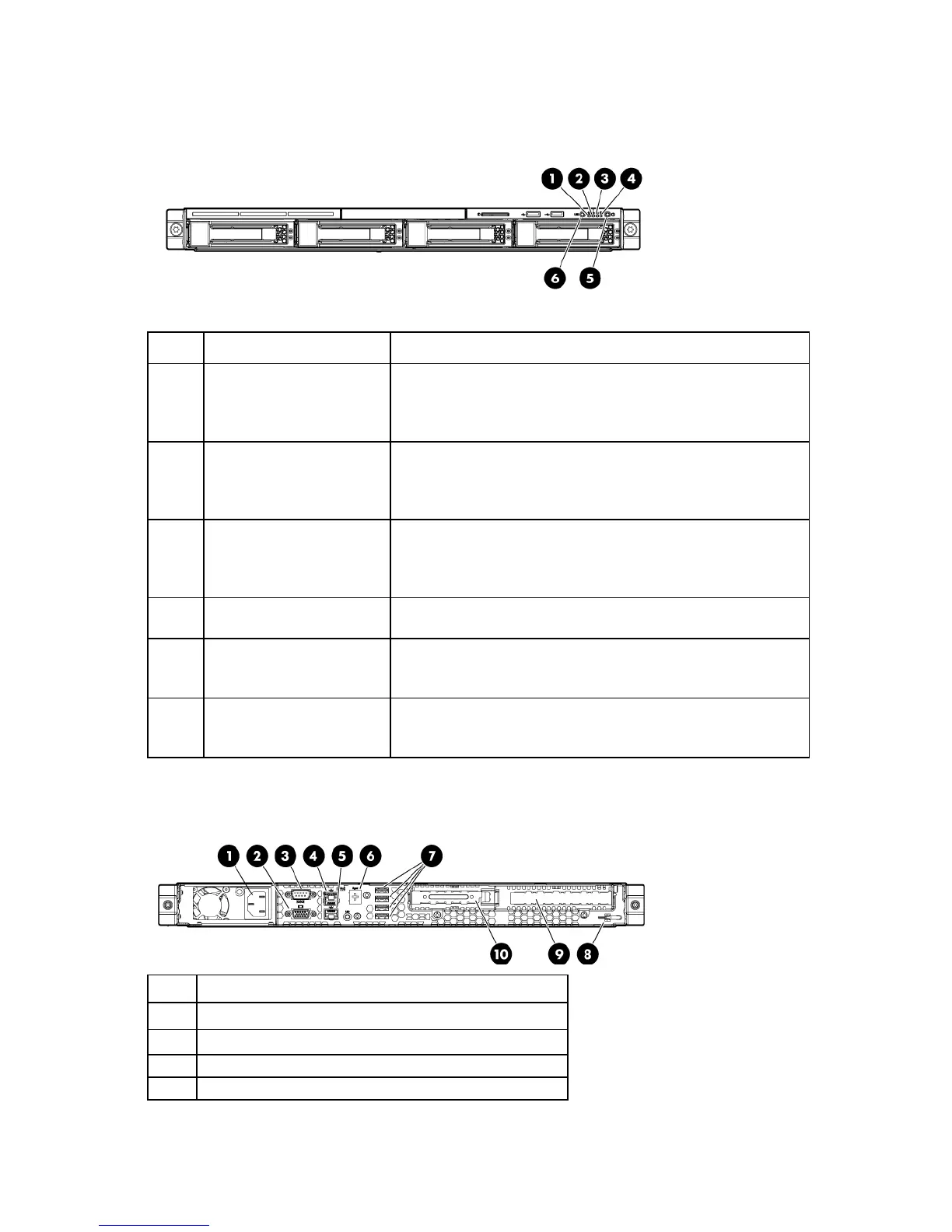

Front panel LEDs
Item Description Status
1
Internal health LED Green = Normal
Amber = System degraded
Red = System critical
Off = Normal (when in standby mode)
2
NIC 1 link/activity LED Green = Network link
Flashing green = Network link and activity
Off = No network link
If the power is off, view the LEDs on the RJ-45 connector.
3
NIC 2 link/activity LED Green = Network link
Flashing green = Network link and activity
Off = No link to network
If the power is off, view the LEDs on the RJ-45 connector.
4
Drive activity LED Green = Drive active
Off = No drive activity
5
and system power LED
Green = Normal (system on)
Amber = System in standby, but power is still applied
Off = Power cord not attached or the power supply failed
6
UID button/LED Blue = Activated
Flashing blue = System being managed remotely
Off = Deactivated
Rear panel components
Item Description
1
Power cord connector
2
Video connector
3
Serial connector
4
10/100/1000 NIC 2 connector
