HP DL120 User Manual

Component identification 9
Item Description
5
10/100/1000 NIC 1 connector/ shared iLO management
port
6
HP dedicated iLO management port (optional)
7
USB connectors (4)
8
T10/T15 tool
9
Slot 1 PCIe2 x16 (16, 8, 4, 1)
10
Slot 2 PCIe2 x8 (4, 1)

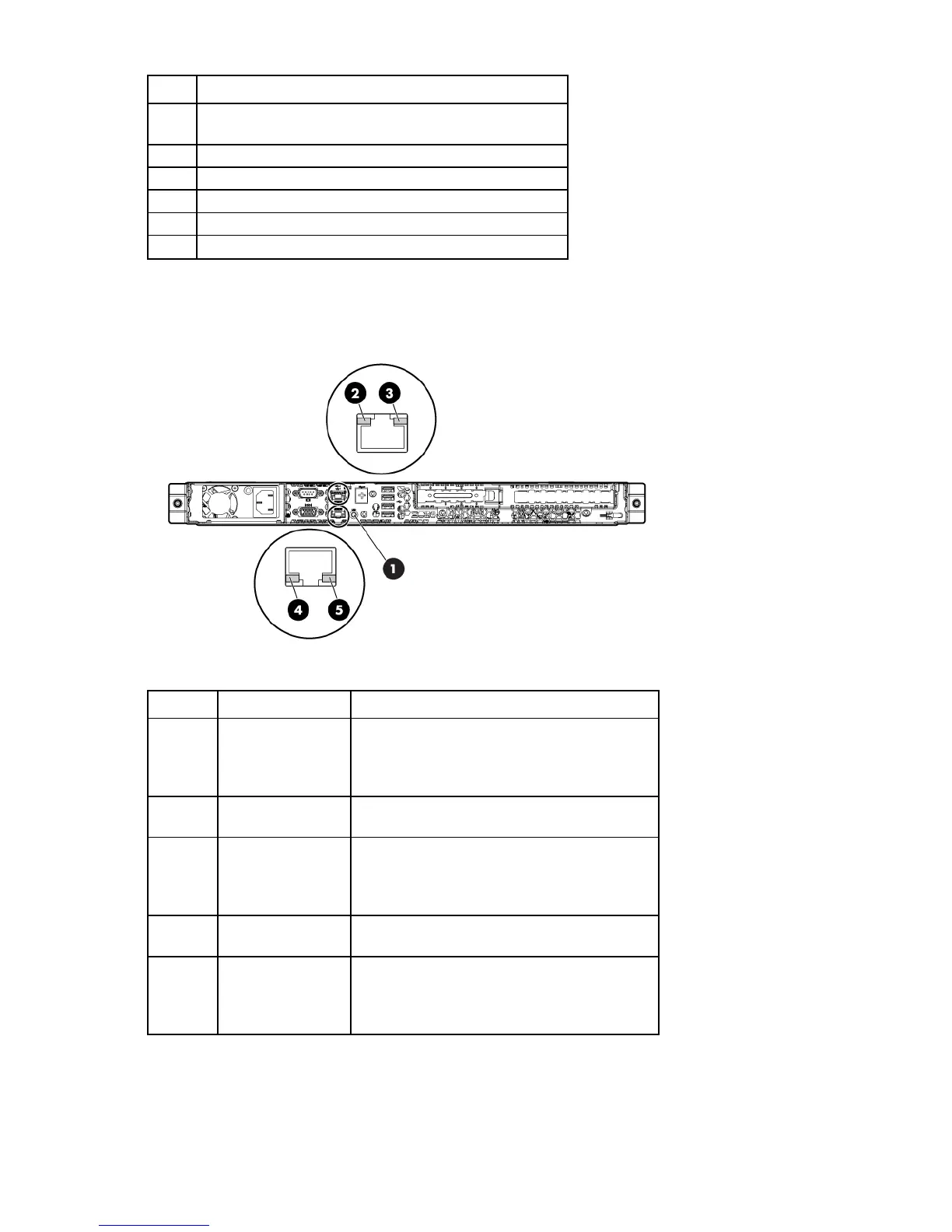

Rear panel LEDs
Item Description Status
1
UID button/LED Blue = Identification
Flashing blue = System is being managed
remotely
Off = Off
2
NIC2 link LED Green = 10M/100M/1G link speed
Off = No connection
3
NIC2 activity LED Green = Linked to the network
Flashing green = Linked and activity on the
network
Off = No network activity
4
NIC1 link LED Green = 10M/100M/1G link speed
Off = No connection
5
NIC1 activity LED Green = Linked to the network
Flashing green = Linked and activity on the
network
Off = No network activity

HP DL120 Specifications

General

Product Line	ProLiant
Rack Height	1U
Processor Type	Intel Xeon
Memory Type	DDR3
Maximum Memory Capacity	32GB
Number of Processors Supported	1
Hard Drive Interface	SATA
Storage	Up to 4 LFF
Expansion Slots	1 x PCIe
Server Type	Rack Server
