HP Elite Slice - Page 20

Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice ODD FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.：
Auditor
Stanley Chen
NPSU-PPE

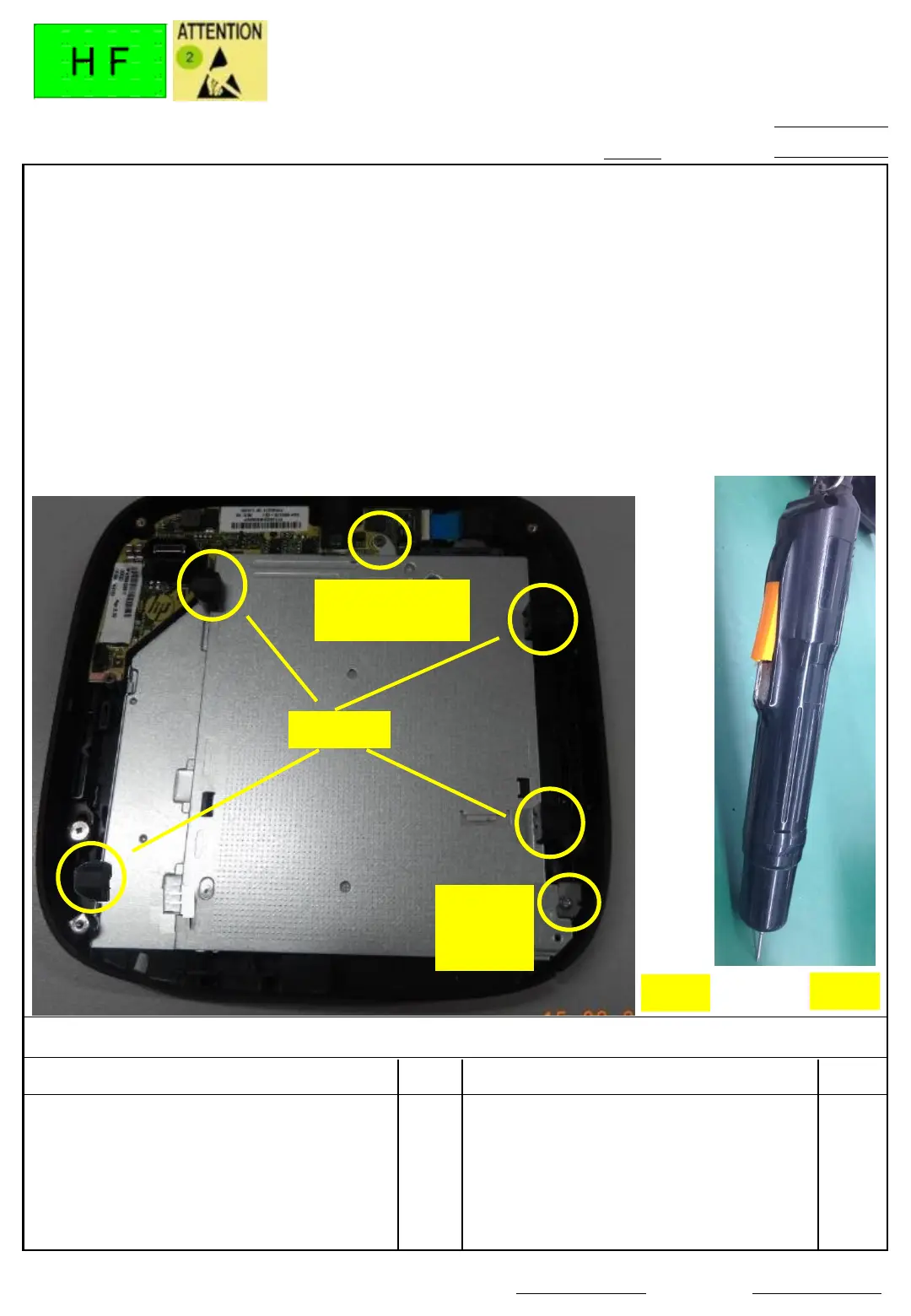

1. Disassembly left side Rubber
(6054B1795001)*2 and right side Rubber
(6054B1795101)*2 (Fig.1)
2. Loosen ODD support frame screw
(6052B0049401) * 1 and right side iron
parts screw (6052B0049401) *1 , and
disassembly right side iron parts
(6053B1308601) . (Fig.1)
 Torque ：2.5 ± 0.2 Kgf．cm
Disassembly rubber & screw
2(1/1)
0.10
2016/6/29
Rubber
ODD support
frame screw
Iron
parts
screw
Cross electrical screw driver #0 1
Fig. 2
Fig. 1
