Notes : If finding anything uncommon, notice foreman or assistant at once.
Standard Operation Procedure
Document No. : Slice ODD FA Disassembly SOP Station :
Operation name : Ver. : Date :
Holding fixture list (holding fixture standard)
Qty
Holding fixture list (holding fixture standard)
Qty
Step：
Issue Dept.：
Auditor
Stanley Chen
NPSU-PPE

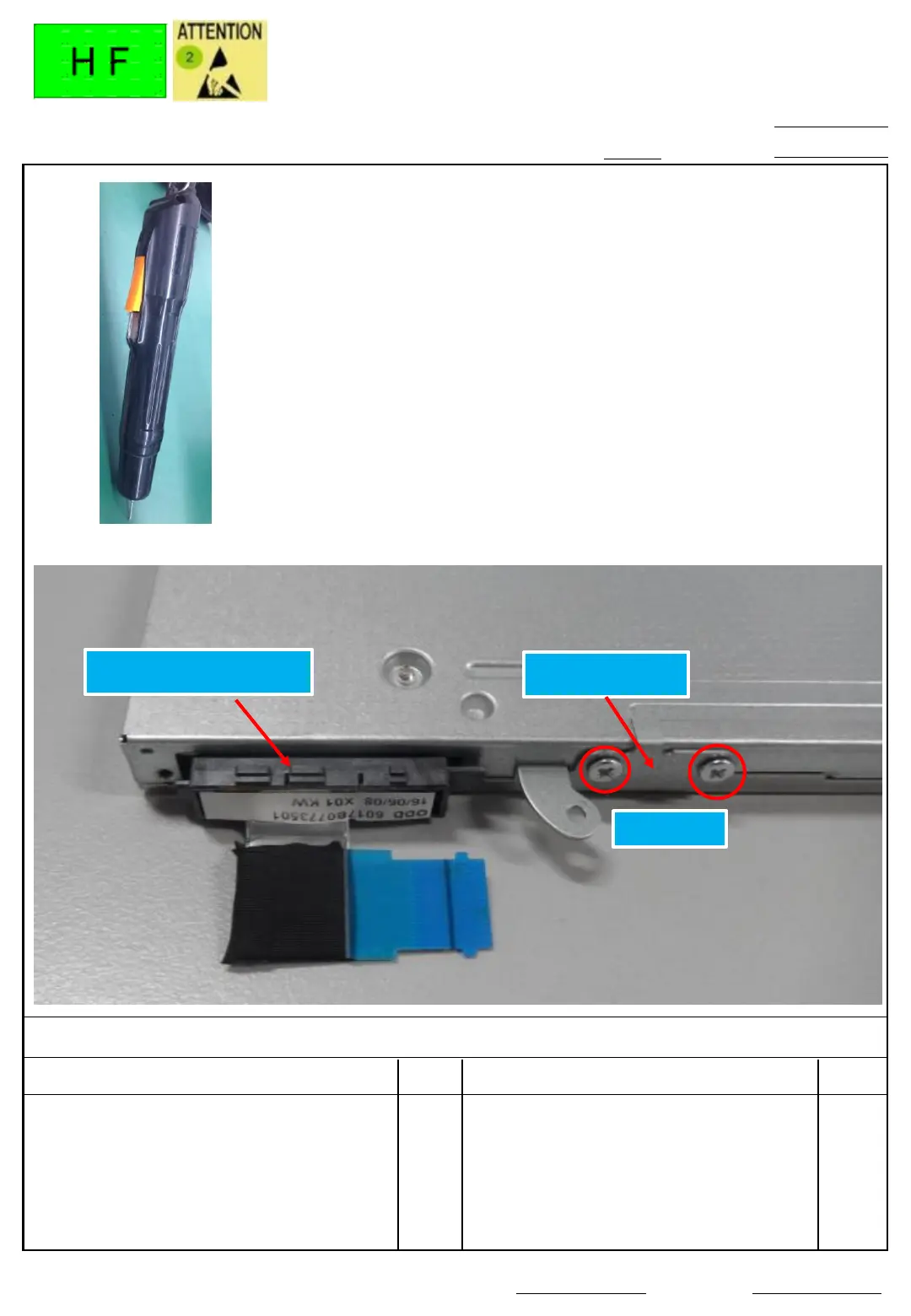

1. Disassembly ODD FFC connector from
ODD side , and put it(6017B0773501) in
the box (Fig.1)
2. Loosen ODD support frame screw
(6052B0228001)*2(Fig.1)
Torque：2.5 ± 0.2 Kgf．cm
3. Put the frame in the box .
Disassembly ODD FFC & support frame
4(1/1)
0.10
2016/6/29
Support frame
screw*2
ODD FFC connector
Cross electrical screw driver#1 1
Support fixture 1
Fig.1
Fig. 2
