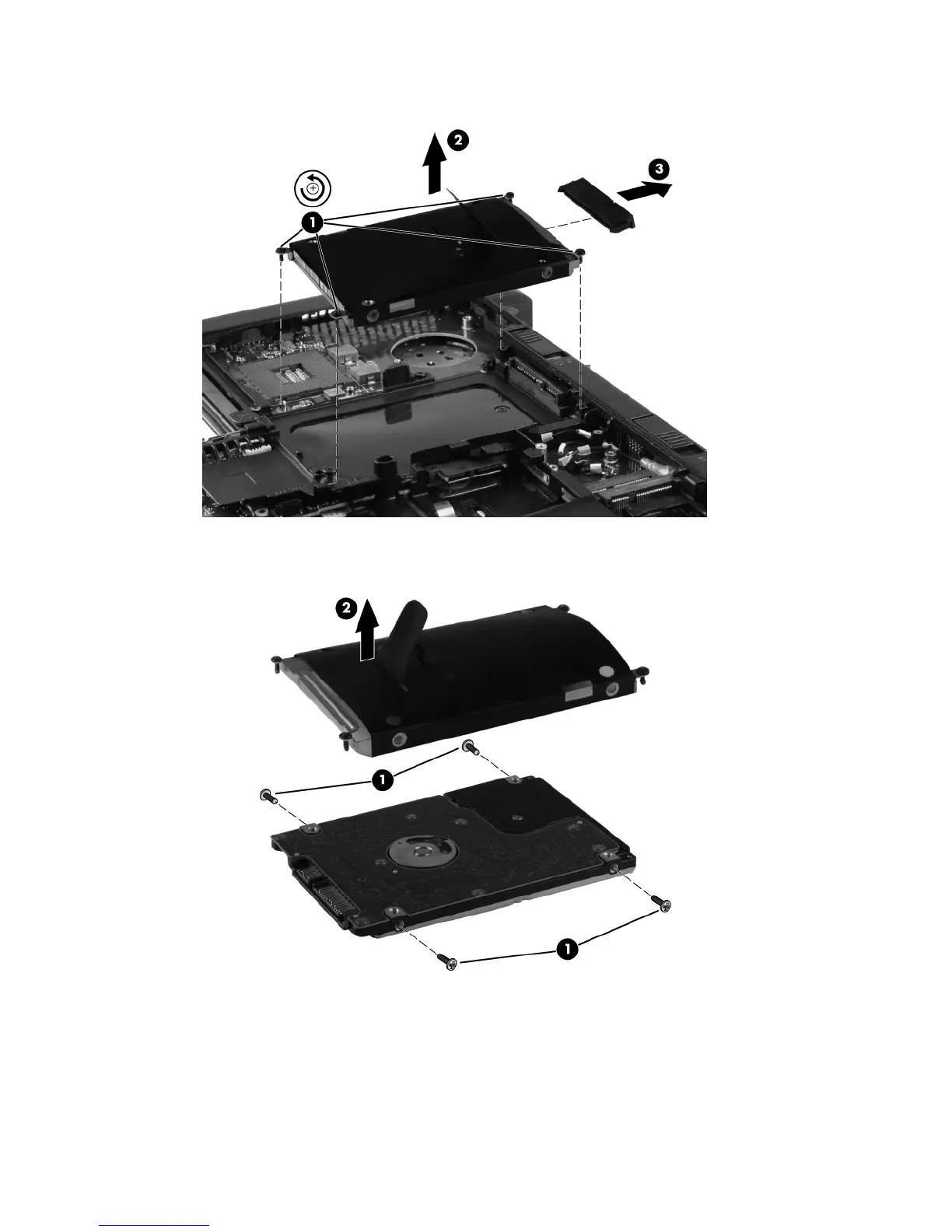

4. If it is necessary to replace the drive connector, remove the connector (3) from the drive.
5. If it is necessary to replace the drive bracket, remove the two Phillips M3.0x3.0 screws (1) on
each side of the drive, and then lift the bracket (2) away from the drive.
Reverse this procedure to reassemble and install the drive.
Component replacement procedures 61
