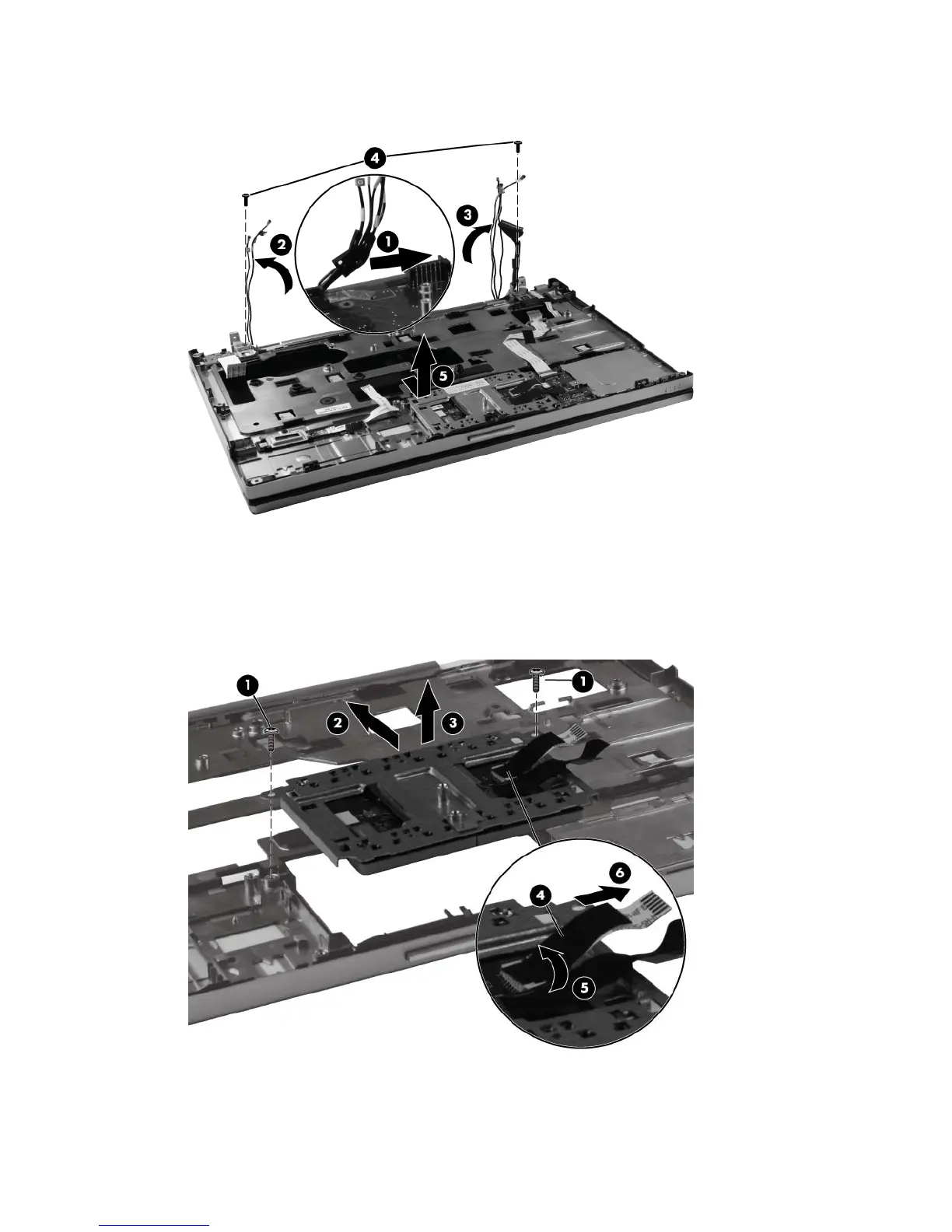

4. Slide the top cover toward you and then lift the cover (5) up to remove it.
5. If it is necessary to replace the TouchPad, remove the two Phillips M2.0x3.0 screws (1) that
secure the TouchPad to the top cover.
6. Slide the TouchPad away from you until the front edge (2) clears the lip of the top cover. Then lift
the TouchPad (3) up.
7. Release the TouchPad cable (4) from the ZIF connector (5), and then remove the cable (6).
Reverse this procedure to install the TouchPad and the top cover.
72 Chapter 4 Removal and replacement procedures
