f.
Fan (see
Fan on page 60)
g. WWAN module (see
WWAN module on page 61)
h.
Modem module (see
Modem module on page 68)
i. Keyboard (see
Keyboard on page 69)
j. Base enclosure (see
Base enclosure on page 74)
k. System board (see
System board on page 79)
l. Top cover (see
Top cover on page 87)

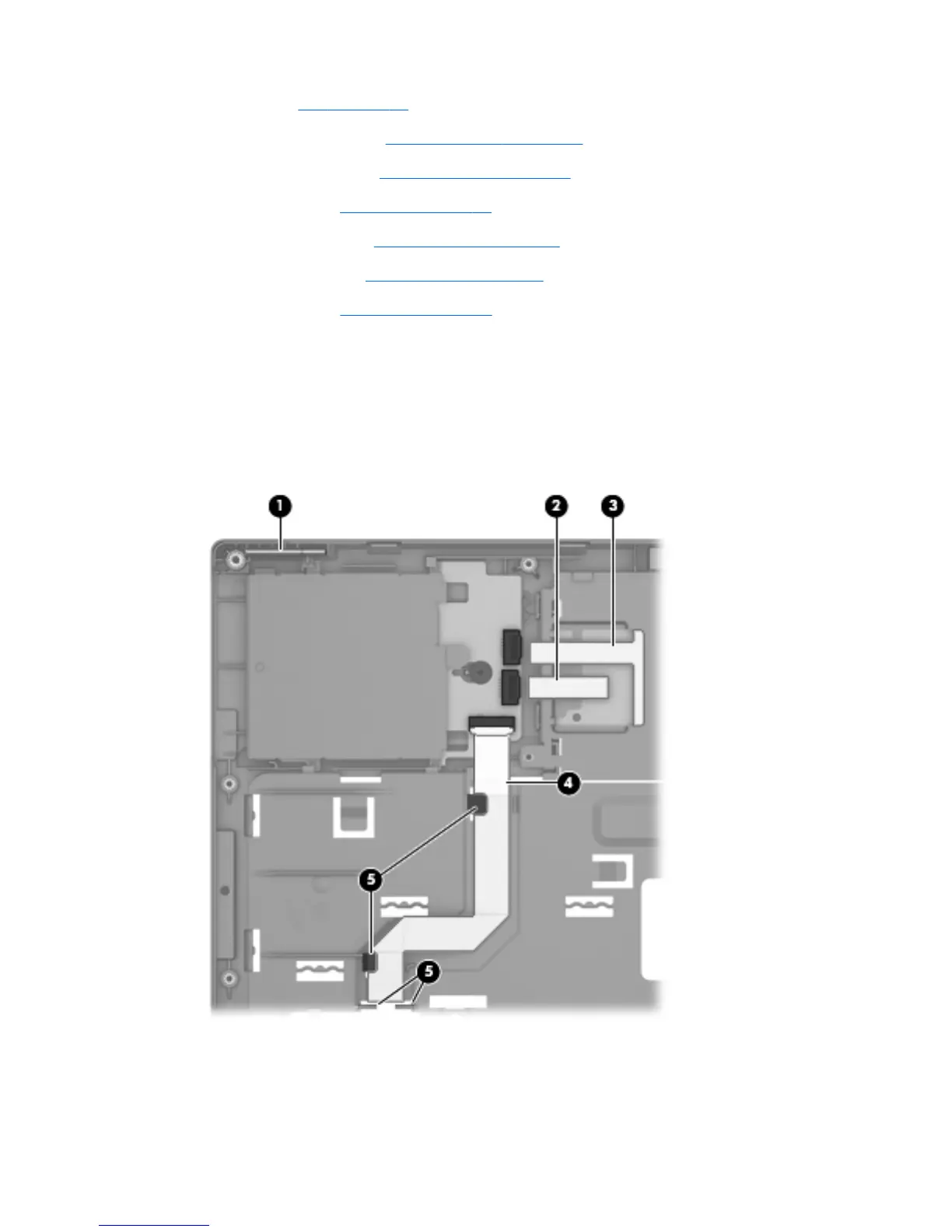

Remove the Smart Card reader assembly:
1. Release the function LED board (1) from the clips built into the top cover.
2. Release the ZIF connectors to which the TouchPad board cables are connected, and then
disconnect the TouchPad cables (2) and (3) from the Smart Card reader assembly.
3. Release the Smart Card reader assembly cable (4) from the clips (5) built into the top cover.
4. Remove the Phillips PM2.0×2.5 broad head screw (1) that secures the Smart Card reader
assembly to the top cover.
Component replacement procedures
93
