5.

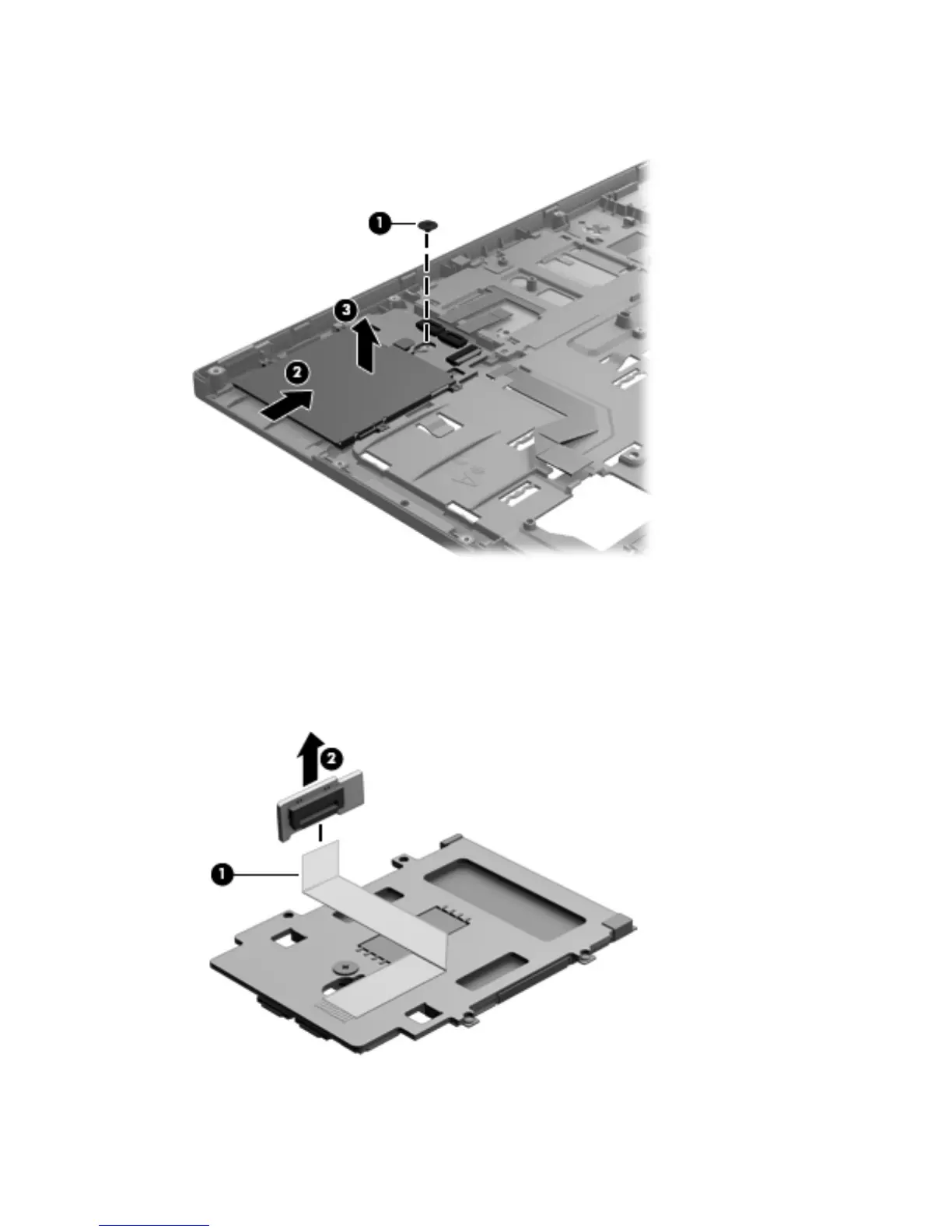

Slide the Smart Card reader assembly (2) to the right to release it from the clips built into the
top cover, and then remove the Smart Card reader assembly (3).
6. If it is necessary to replace the function LED board, release the ZIF connector to which the function
LED board cable is connected, and then disconnect the function LED board cable (1) from the
function LED board.
7. Remove the function LED board (2).
The function LED board is available using spare part number 685509-001.
Reverse this procedure to install the Smart Card reader assembly and function LED board.
94 Chapter 4 Removal and replacement procedures
