c.

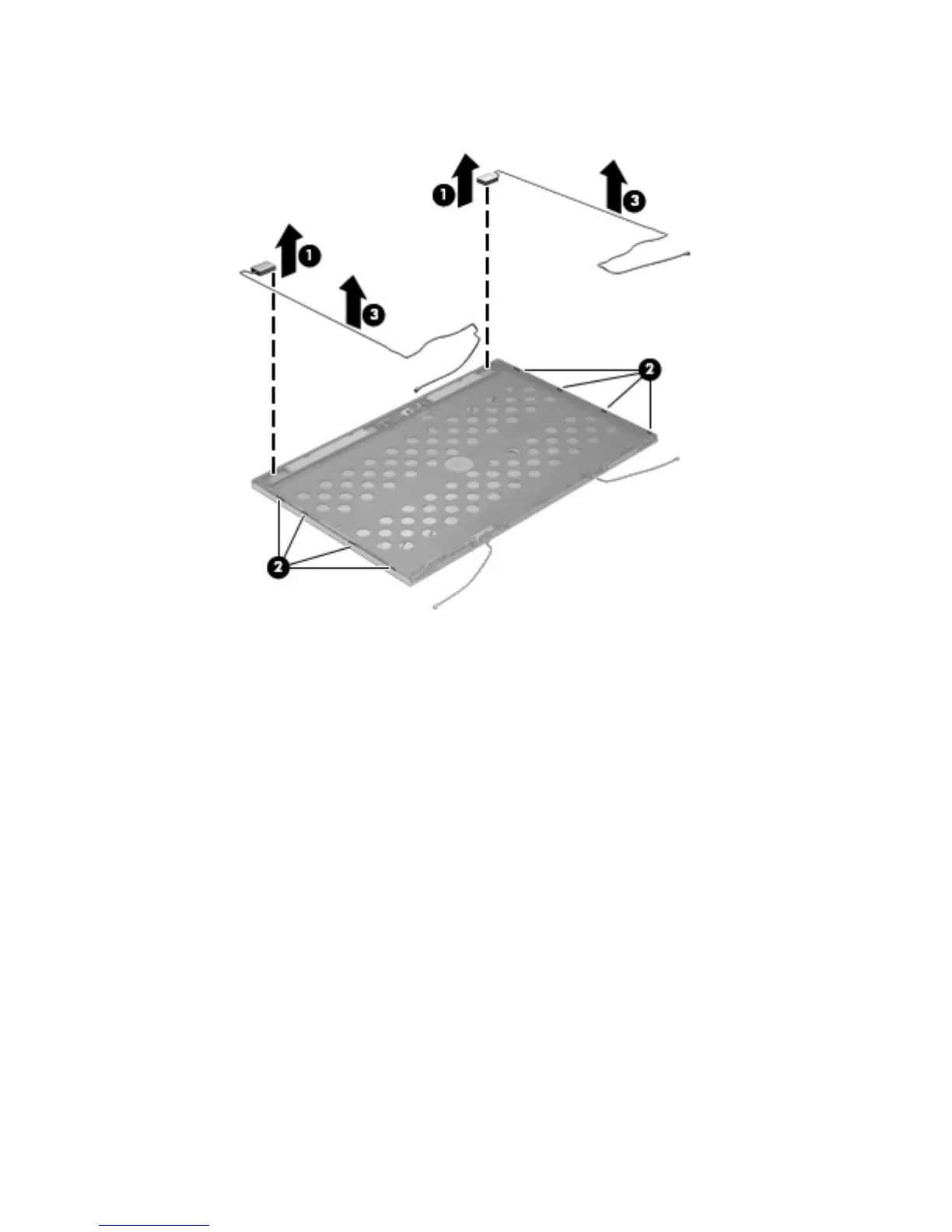

Remove the WLAN antenna cables and transceivers (3). The WLAN antenna cables and
transceivers are included in the Antenna Kit, spare part number 685506-001.
8. If it is necessary to replace the WWAN antenna cables and transceivers:
a. Detach the WWAN antenna transceivers (1) from the display enclosure. (The WWAN
antenna transceivers are attached to the display enclosure with double-sided tape.)
b. Release the WWAN antenna cables from the clips (2) and routing channels built into the
display enclosure.
Component replacement procedures
103
