c.

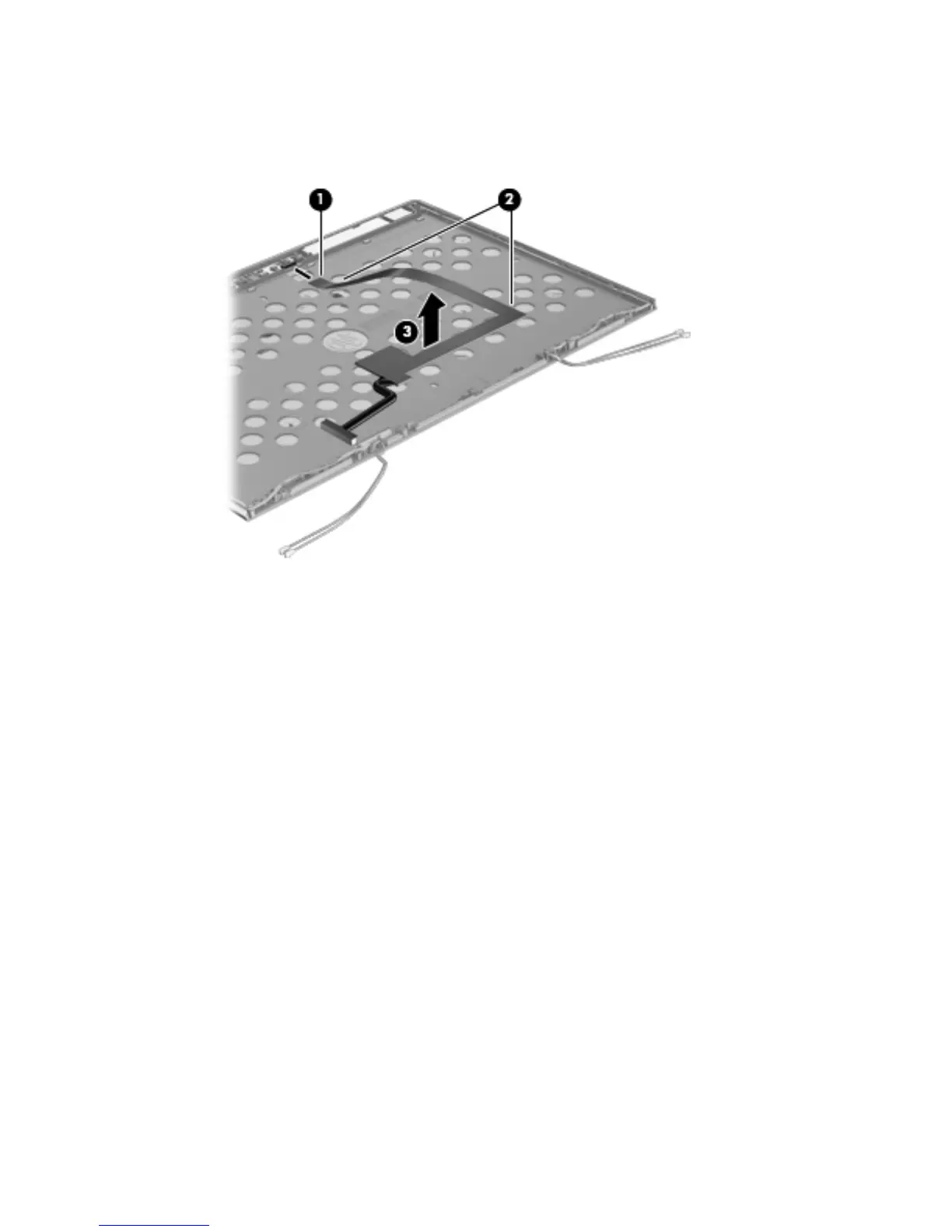

Remove the display panel cable (3).
The display panel cable is included in the Display Cable Kit, spare part number
685417-001.
7.
If it is necessary to replace the WLAN antenna cables and transceivers:
a. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN antenna
transceivers are attached to the display enclosure with double-sided tape.)
b. Release the WLAN antenna cables from the clips (2) and routing channels built into the
display enclosure.
102 Chapter 4 Removal and replacement procedures
