c.

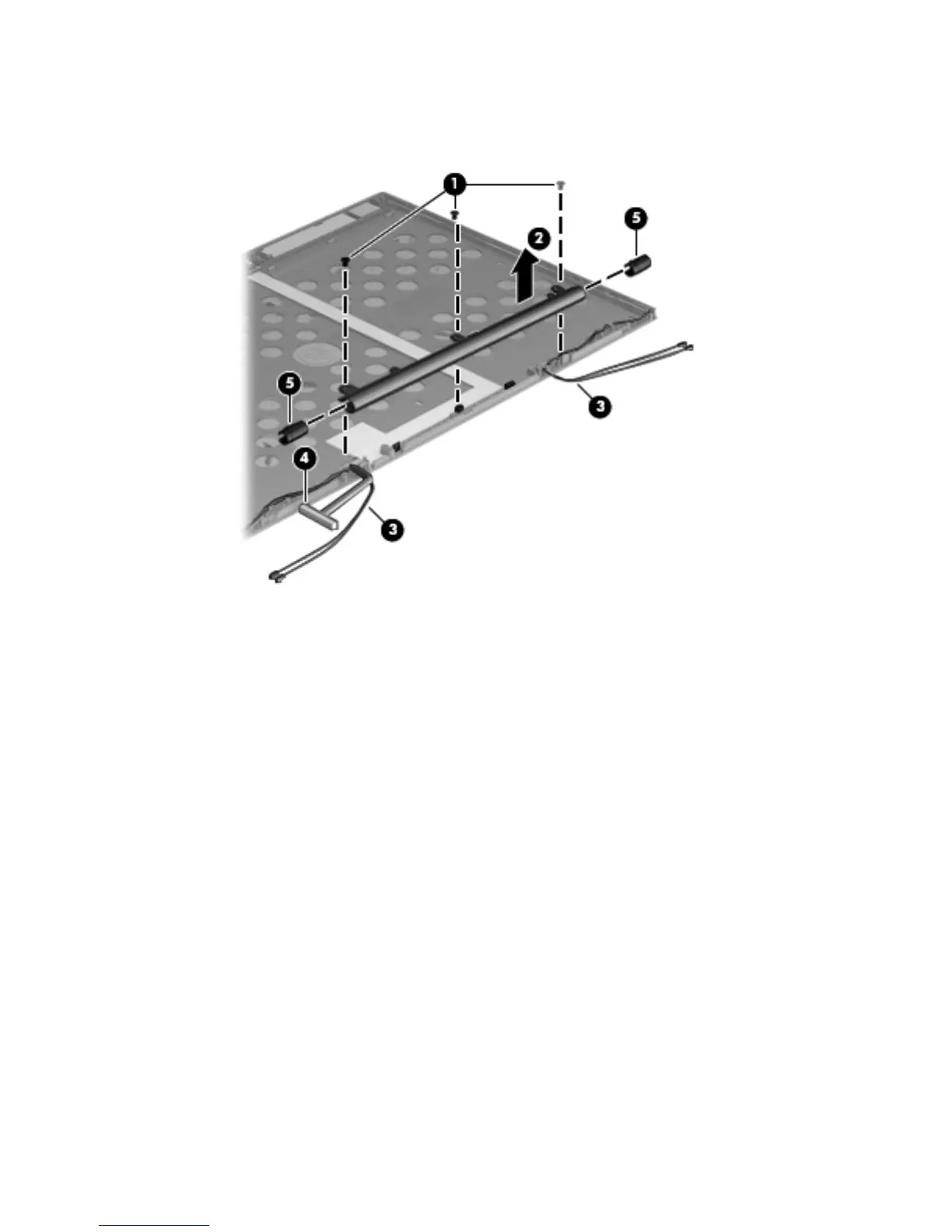

Release the wireless antenna cables (3) and display panel cable (4) from the display clutch
cover, making note of the locations of the display cable guides (5) at the left and right ends
of the display clutch cover.
d. Remove the display clutch cover.
The display clutch cover is included in the Display Hinge Cover Kit, spare part number
685405-001.
6. If it is necessary to replace the display panel cable:
a. Disconnect the display panel cable (1) from the webcam/microphone module.
b. Detach the display panel cable (2) from the surface of display enclosure. (The display panel
cable is attached to the display enclosure with double-side adhesive.)
Component replacement procedures
101
