c.

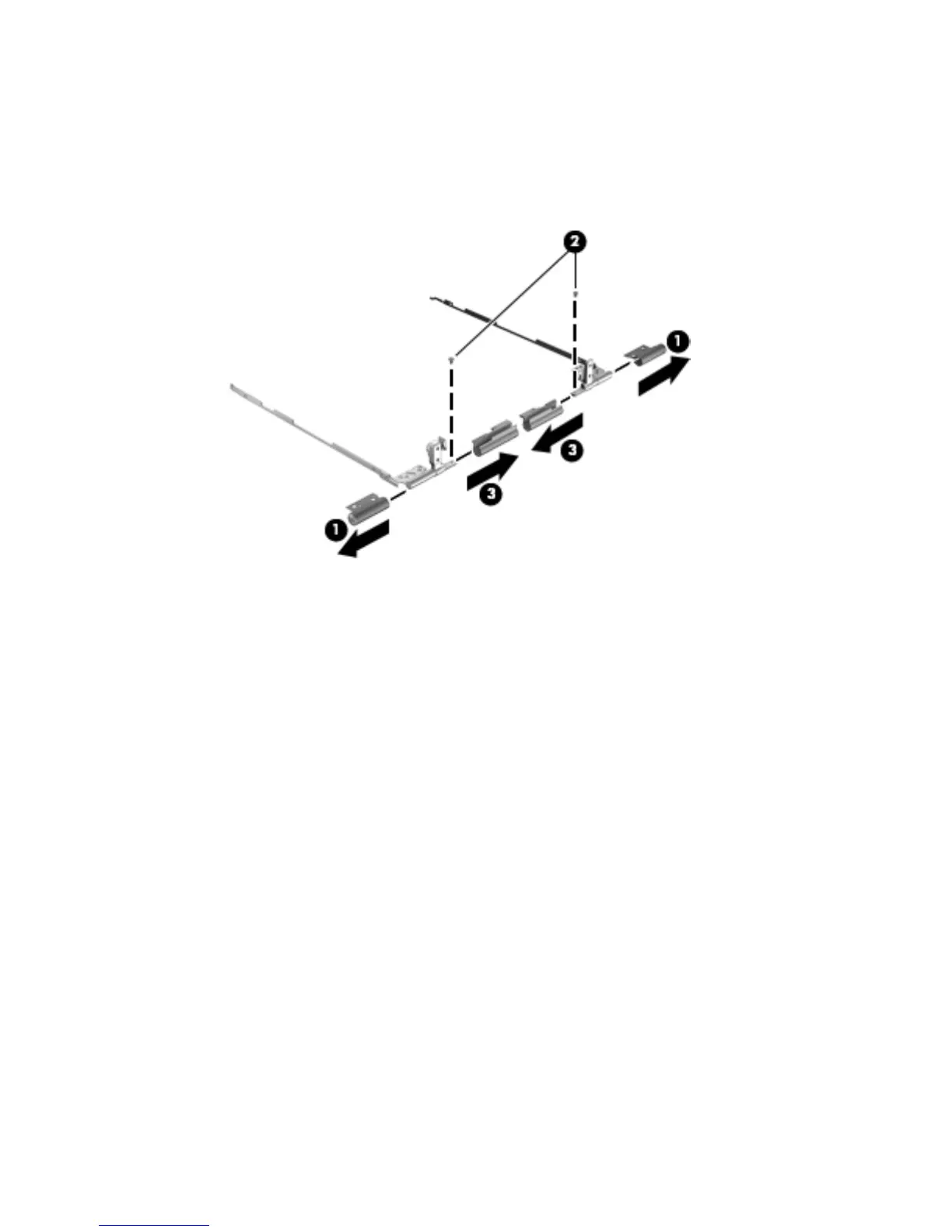

Remove the display hinge covers (3) from the display hinges.
The display hinges are included in the Display Hinge Kit, spare part number 685414-001.
The display hinge covers and display hinge caps are included in the Display Hinge Cover
Kit, spare part number 685405-001.
5. If it is necessary to replace the display clutch cover:
a. Remove the three Phillips PM2.0×3.6 screws (1) that secure the display clutch cover to the
display enclosure.
b. Release the display clutch cover (2) from the display enclosure.
100 Chapter 4 Removal and replacement procedures
