9.

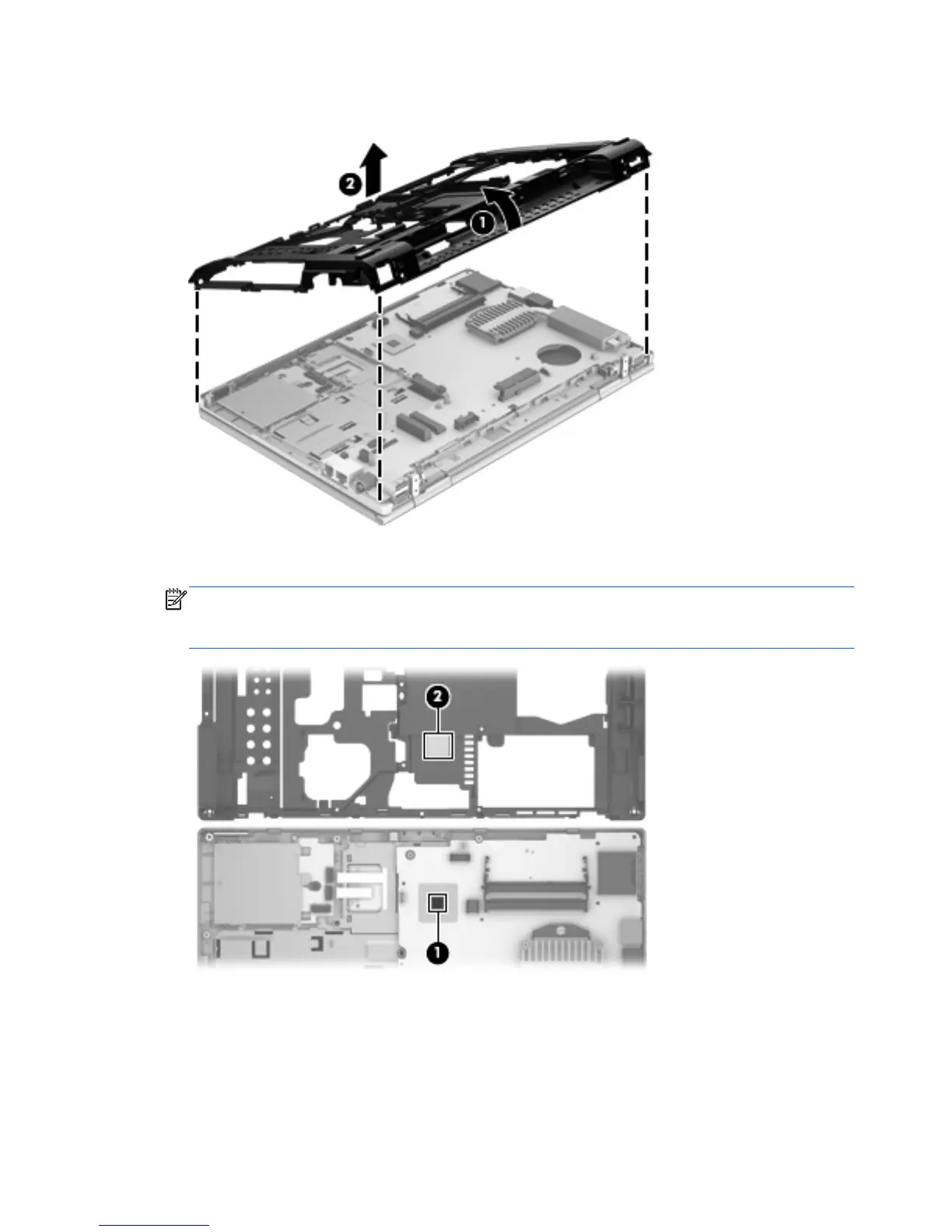

Remove the base enclosure (2) from the computer.
10. Remove the base enclosure.
NOTE: When replacing the base enclosure, thoroughly clean the thermal pad material from the
surfaces of the PCH chip (1) and the base enclosure (2). All base enclosure and system board
spare part kits include replacement thermal pad material.
Reverse this procedure to install the base enclosure.
78 Chapter 4 Removal and replacement procedures
