11–2 Maintenance and Service Guide
Recycling

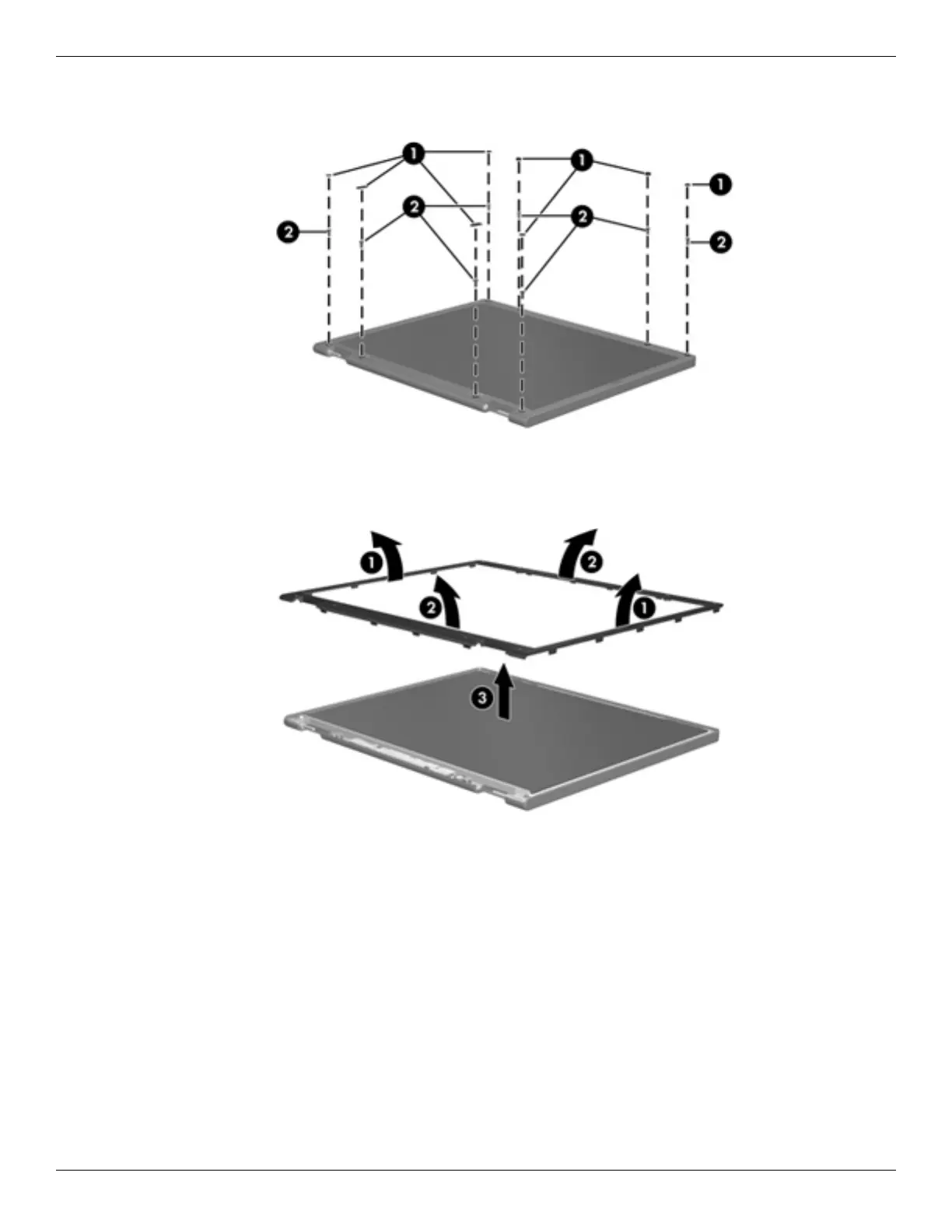

Perform the following steps to disassemble the display assembly:
1. Remove all screw covers 1 and screws 2 that secure the display bezel to the display assembly.
2. Lift up and out on the left and right inside edges 1 and the top and bottom inside edges 2 of the display bezel
until the bezel disengages from the display assembly.
3. Remove the display bezel 3.
