Removal and replacement procedures
Maintenance and Service Guide 4–11

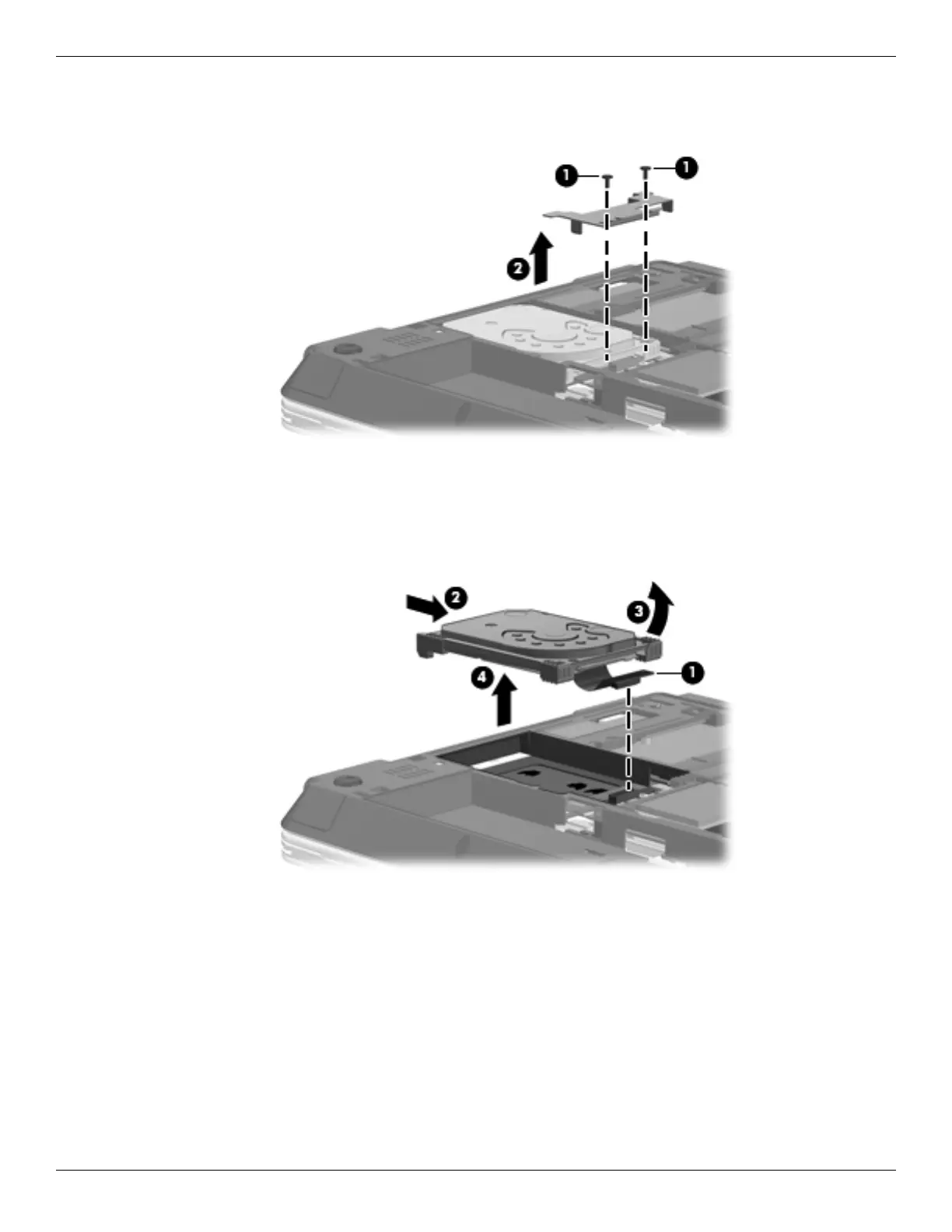

3. Remove the two Phillips PM2.0×3.0 screws 1 that secure the hard drive bracket to the computer.
4. Remove the hard drive bracket 2.
5. Disconnect the hard drive connector cable 1 from the system board.
6. Release the hard drive 2 by sliding it to the right, and then lifting the rear edge 3 until the hard drive rests at
an angle.
7. Lift the hard drive 4 straight up to remove it from the hard drive compartment.
Reverse this procedure to reassemble and install the hard drive.
