4–32 Maintenance and Service Guide
Removal and replacement procedures
6. Position the computer with the front toward you.

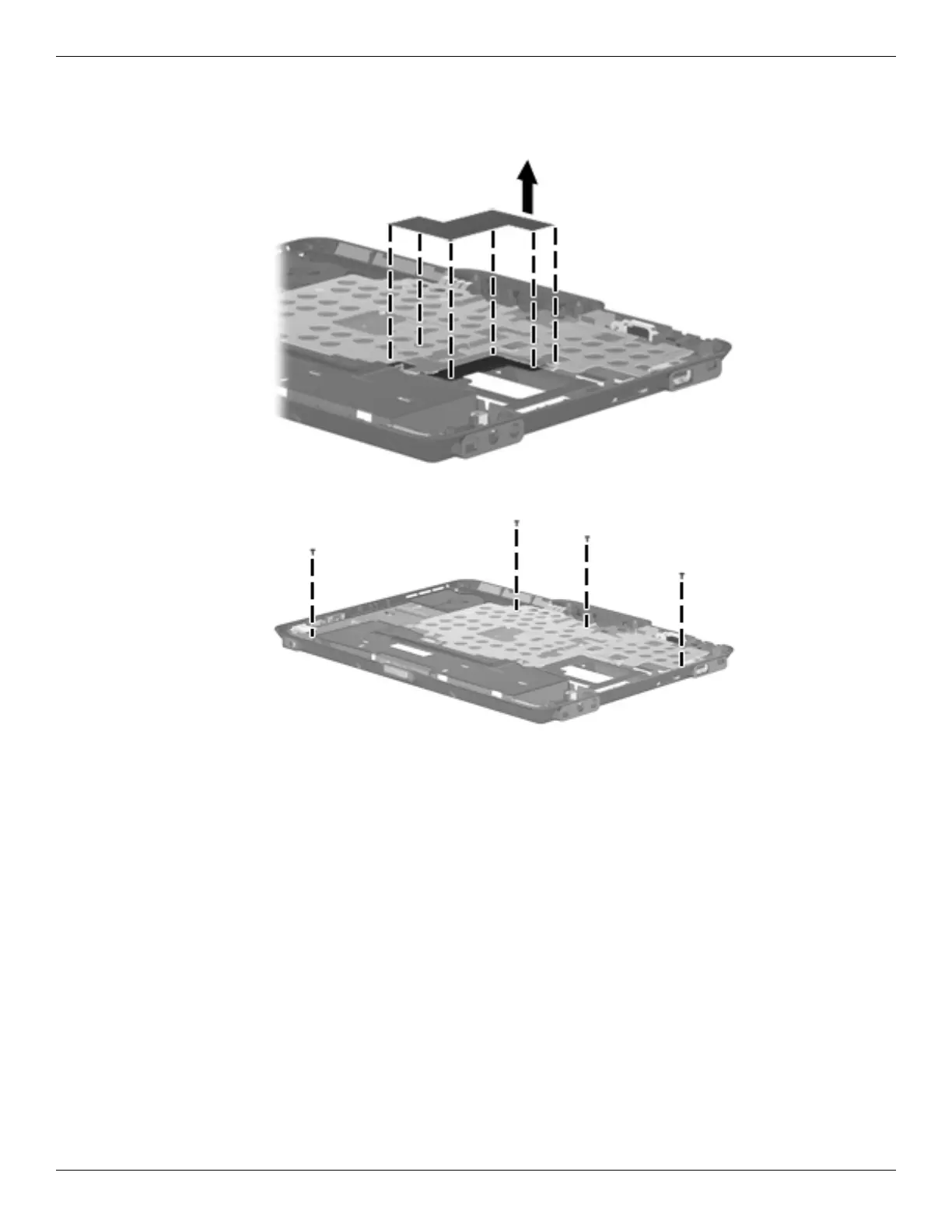

7. Remove the system board shield. The system board shield is included in the Shield Kit, spare part number
501503-001.
8. Remove the four Phillips PM2.0×5.0 screws that secure the system board to the base enclosure.
