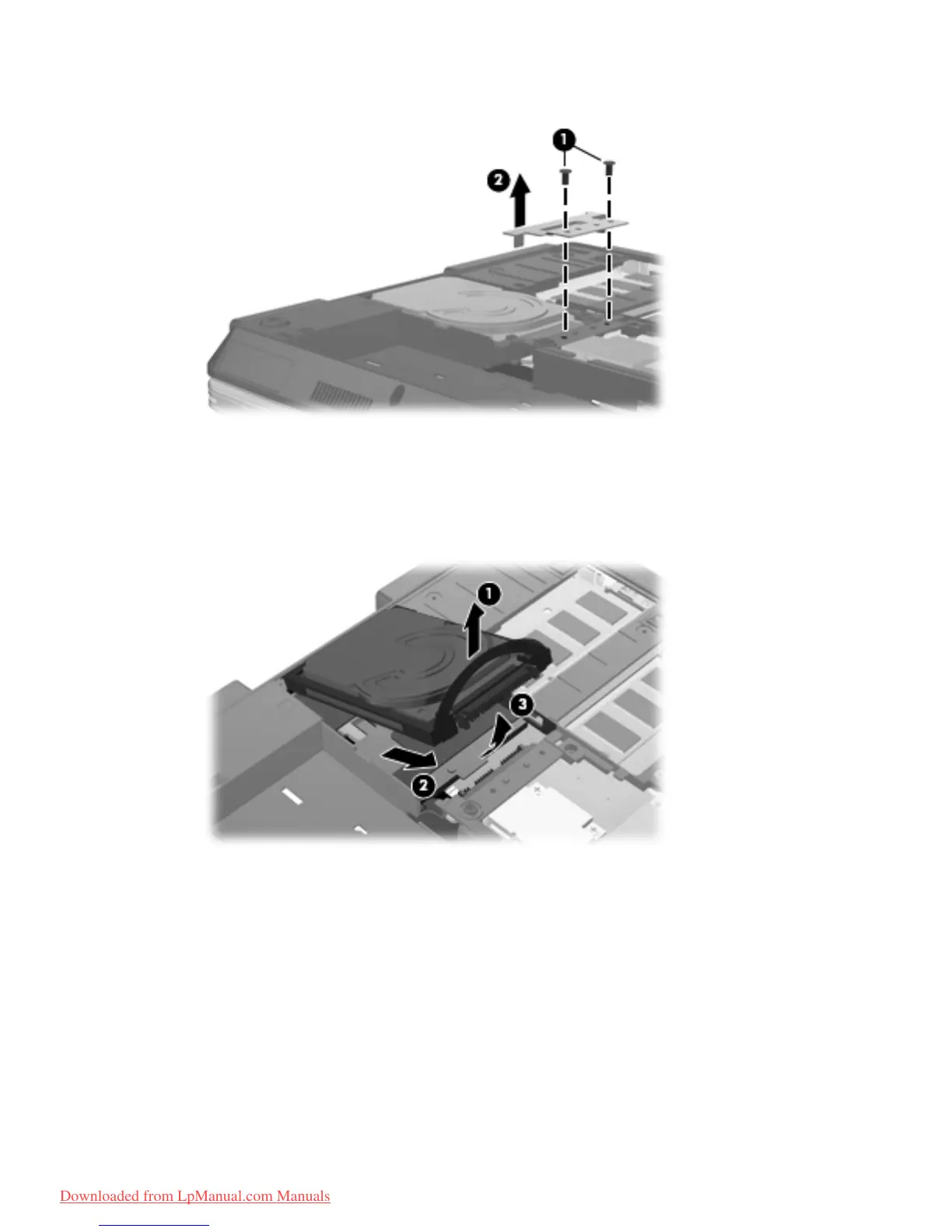

10. Remove the hard drive bracket (2).
11. Grasp the tab on the hard drive and pull upward (1) until the hard drive is at a 45-degree angle.
12. With the hard drive at a 45-degree angle, pull it forward (2) until the rear of the hard drive is clear
of the computer back edge.
13. Lift the hard drive (3) out of the hard drive bay.
To install a hard drive:
1. Insert the rear of the hard drive at a 45-degree angle into the back of the hard drive bay (1).
Replacing the hard drive in the hard drive bay 89
