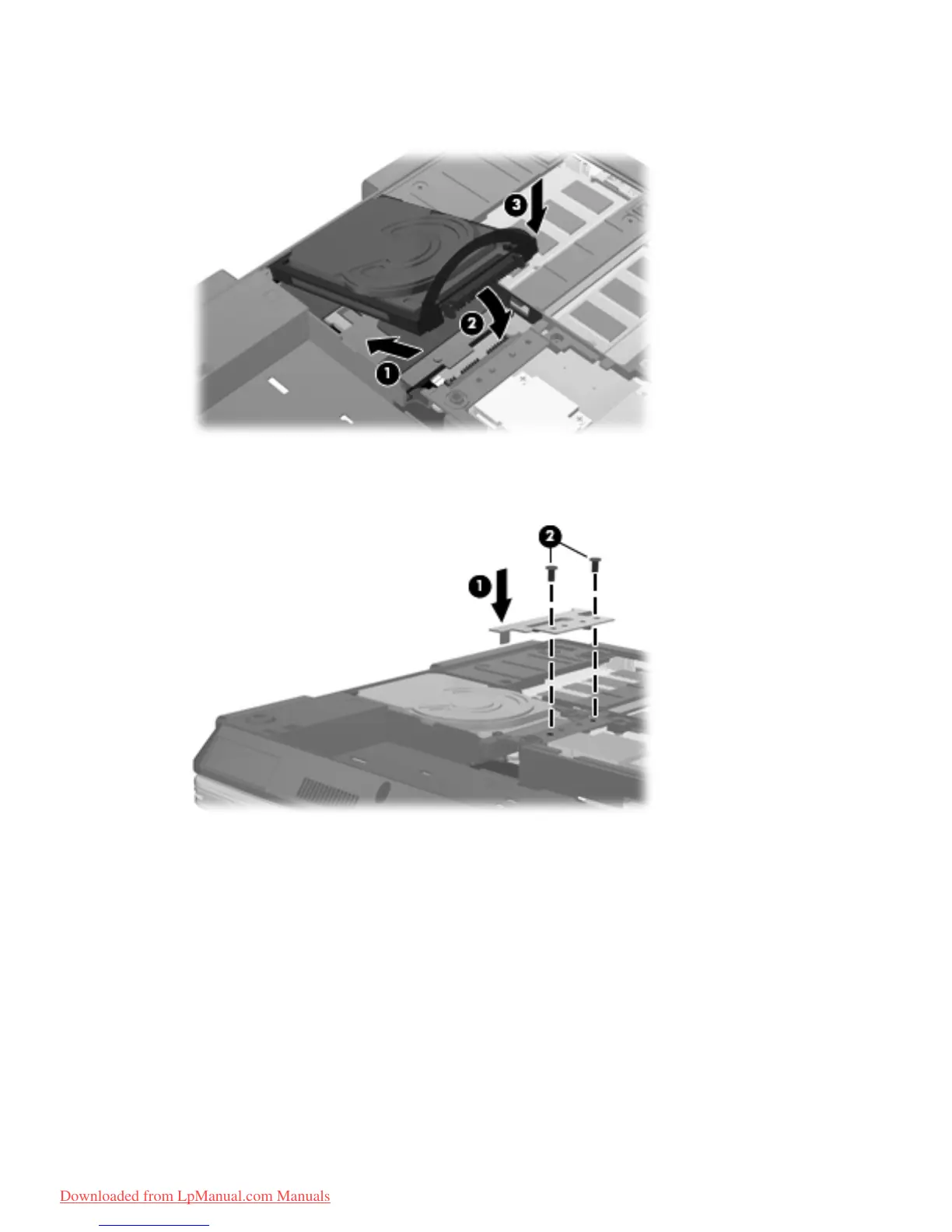

2. Lower the front of the hard drive down onto the system board connector (2), and then press
down (3) to connect the hard drive.
3. Replace the hard drive bracket (1).
4. Replace the 2 hard drive bracket screws (2).
5. Align the tabs (1) on the hard drive cover with the notches on the computer.
6. Close the cover (2).
90 Chapter 7 Drives
