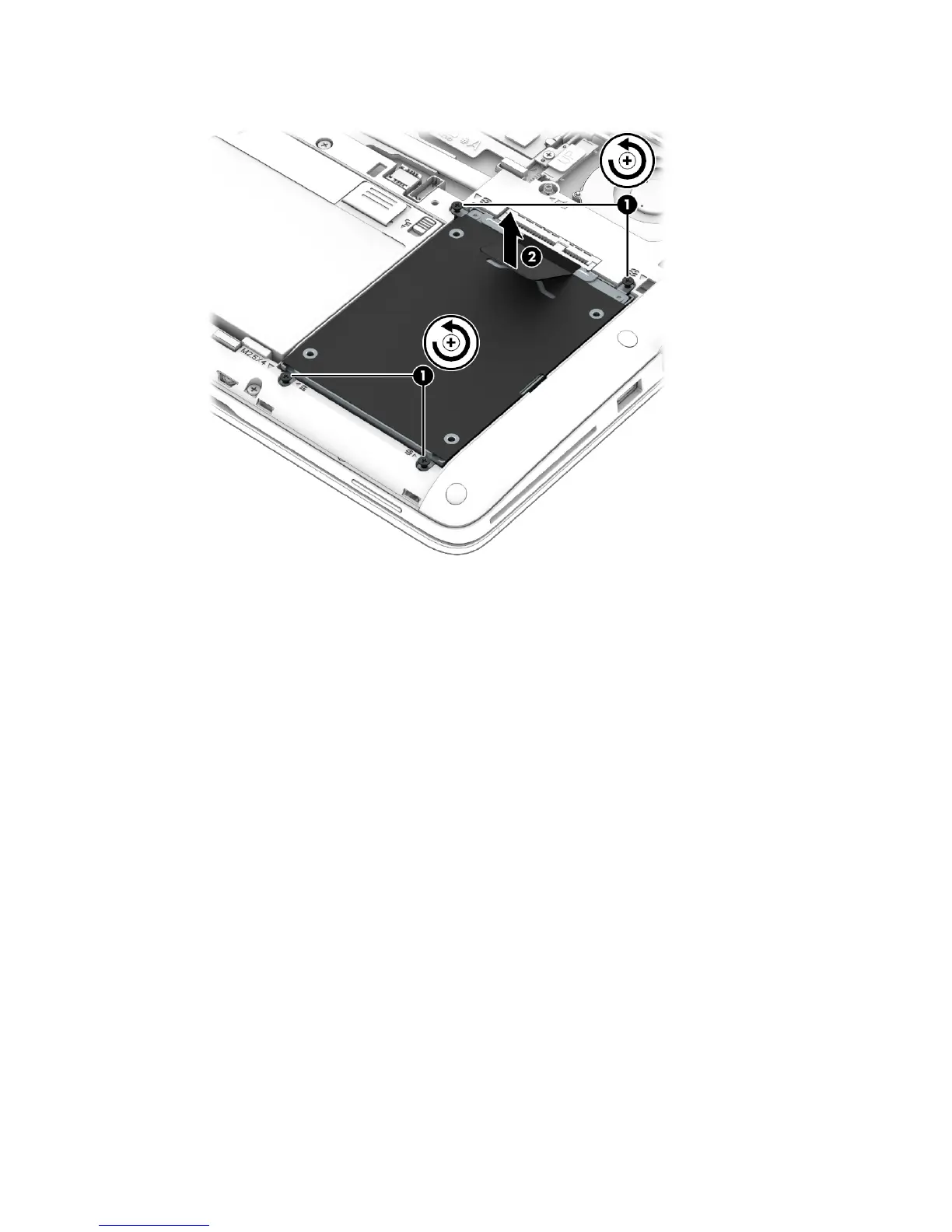

2. Use the release tab (2) to remove the hard drive.
3. If it is necessary to disassemble the hard drive, perform the following steps:
a. Position the hard drive with the rear toward you.
b. Remove the four Phillips PM2.75×3.5 screws (1) that secure the hard drive bracket to the hard
drive.
c. Remove the hard drive bracket (2) from the hard drive.
Component replacement procedures 43
