1. Close the computer.
2. Turn the computer upside down with the front toward you.

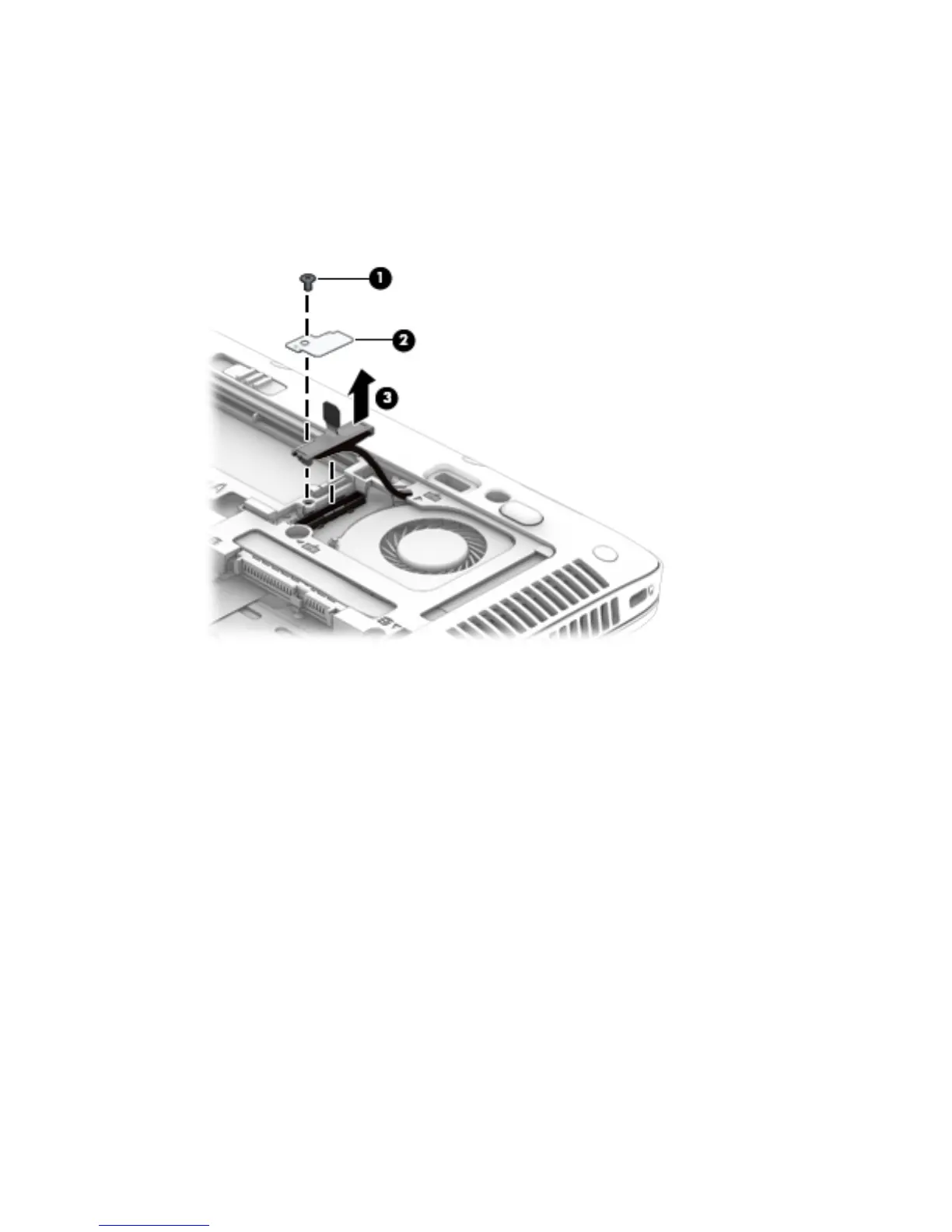

3. Remove the Phillips PM2.0×3.25 screw (1) that secures the display panel cable bracket and display
panel cable to the system board.
4. Remove the display panel cable bracket (2).
5. Disconnect the display panel cable (3) from the system board.
6. Remove the following rubber screw covers:
(1) This screw cover has a “1” marking on the inside of the cover
(2) These screw covers have a “2” marking on the inside of the cover
(3) These screw covers have a “3” marking on the inside of the cover
Component replacement procedures 59
