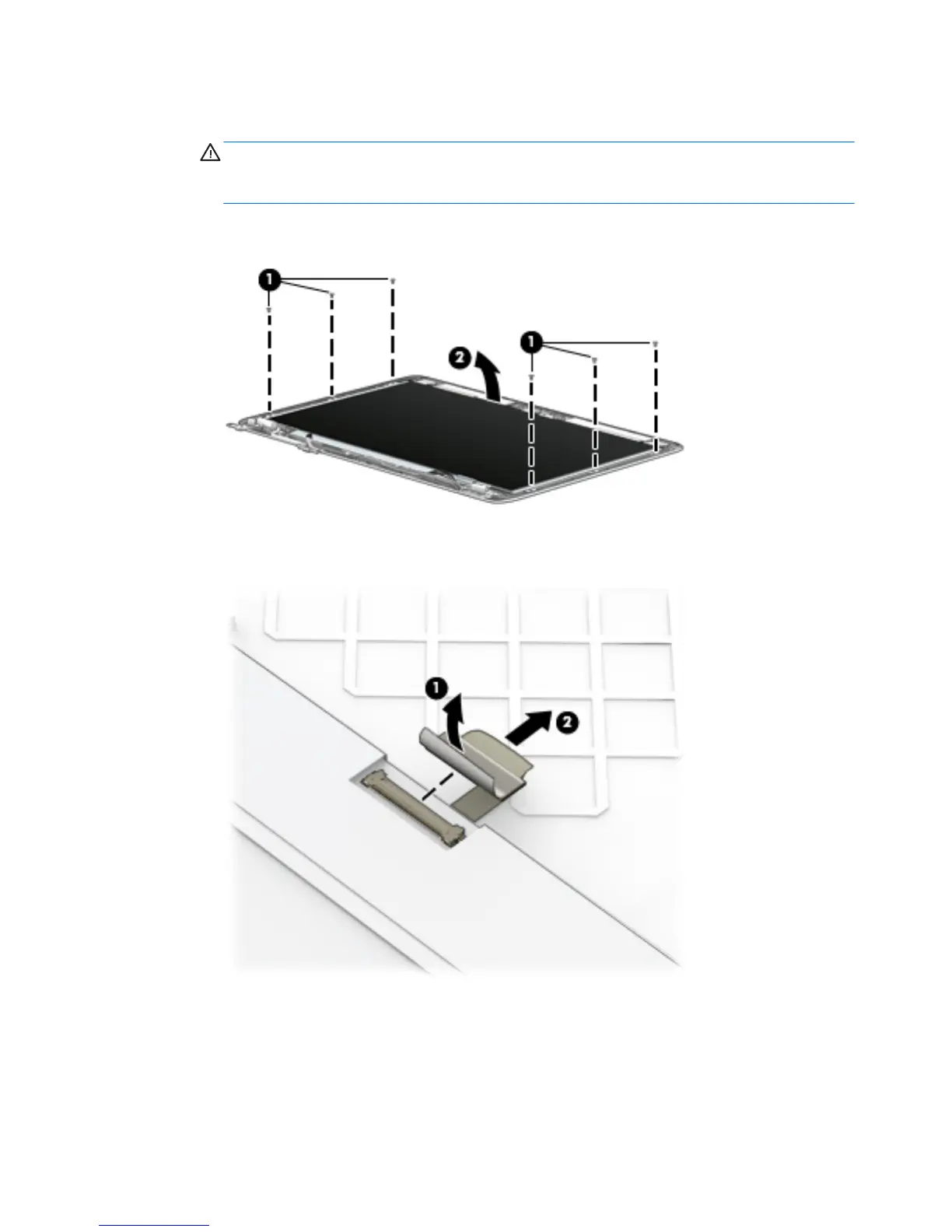

a. Remove the six Phillips PM2.0×3.25 screws (1) that secure the display panel to the
display enclosure.
CAUTION: Before turning the display panel upside down, make sure the work surface is clear of
tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel.
b. Lift the top edge of the display panel (2) and swing it up and forward until it rests upside down in
front of the display back cover.
c. Release the adhesive strip (1) that secures the display panel cable connector to the display panel.
d. Disconnect the display panel cable (2) from the display panel.
e. Remove the display panel.
The display panel is available using spare part numbers 776930-001 (12.5-in, AG, FHD, LED, UWVA
display panel) and 765607-001 (12.5-in, AG, HD, LED, SVA display panel).
7. If it is necessary to replace the webcam/microphone module or the microphone module:
64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
