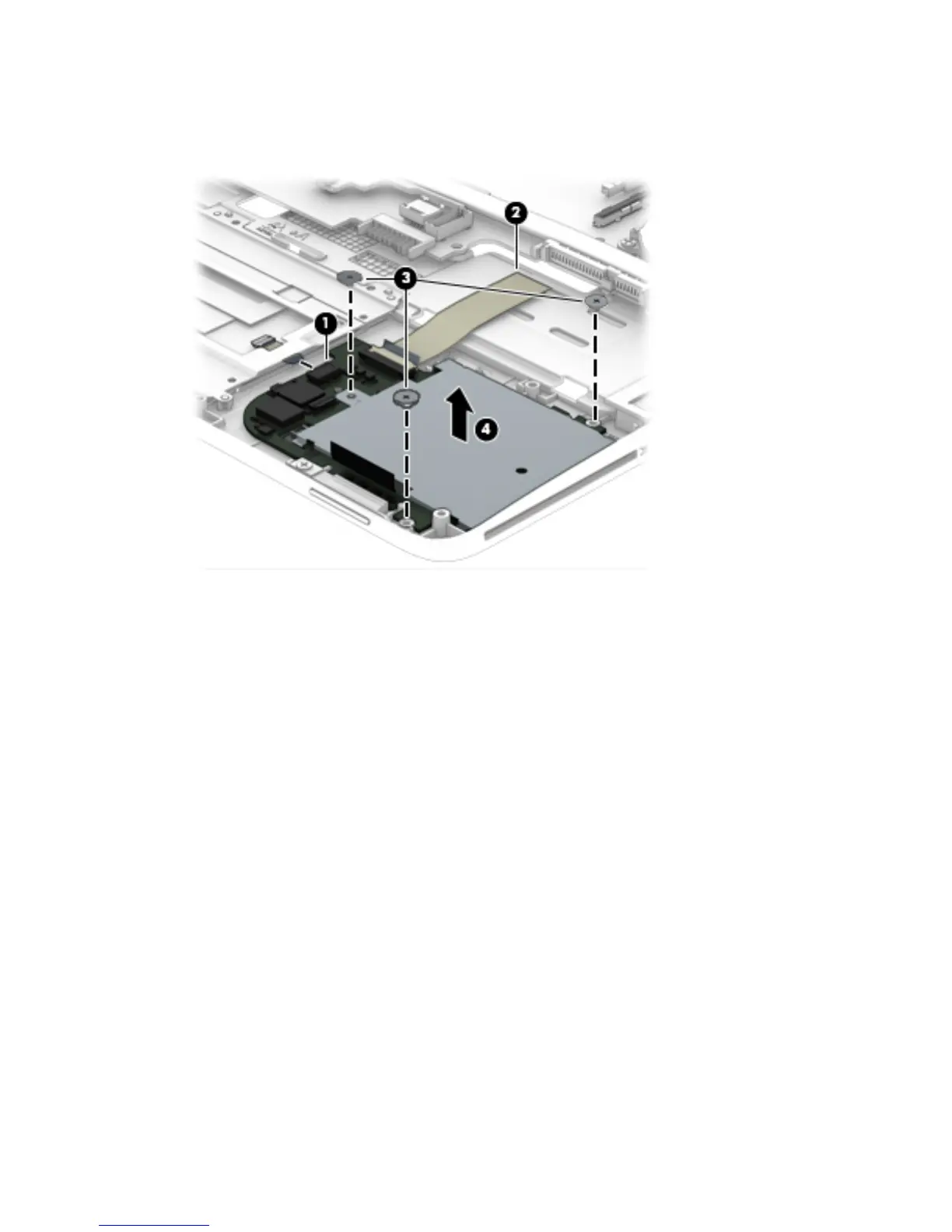

6. Remove the three Philllips PM2.0×2.0 broad head screws (3) that secure the card reader board to the

top cover.

7. Remove the card reader board and cable (4).

8. Remove the card reader board and cable.

Reverse this procedure to install the card reader board.

70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
