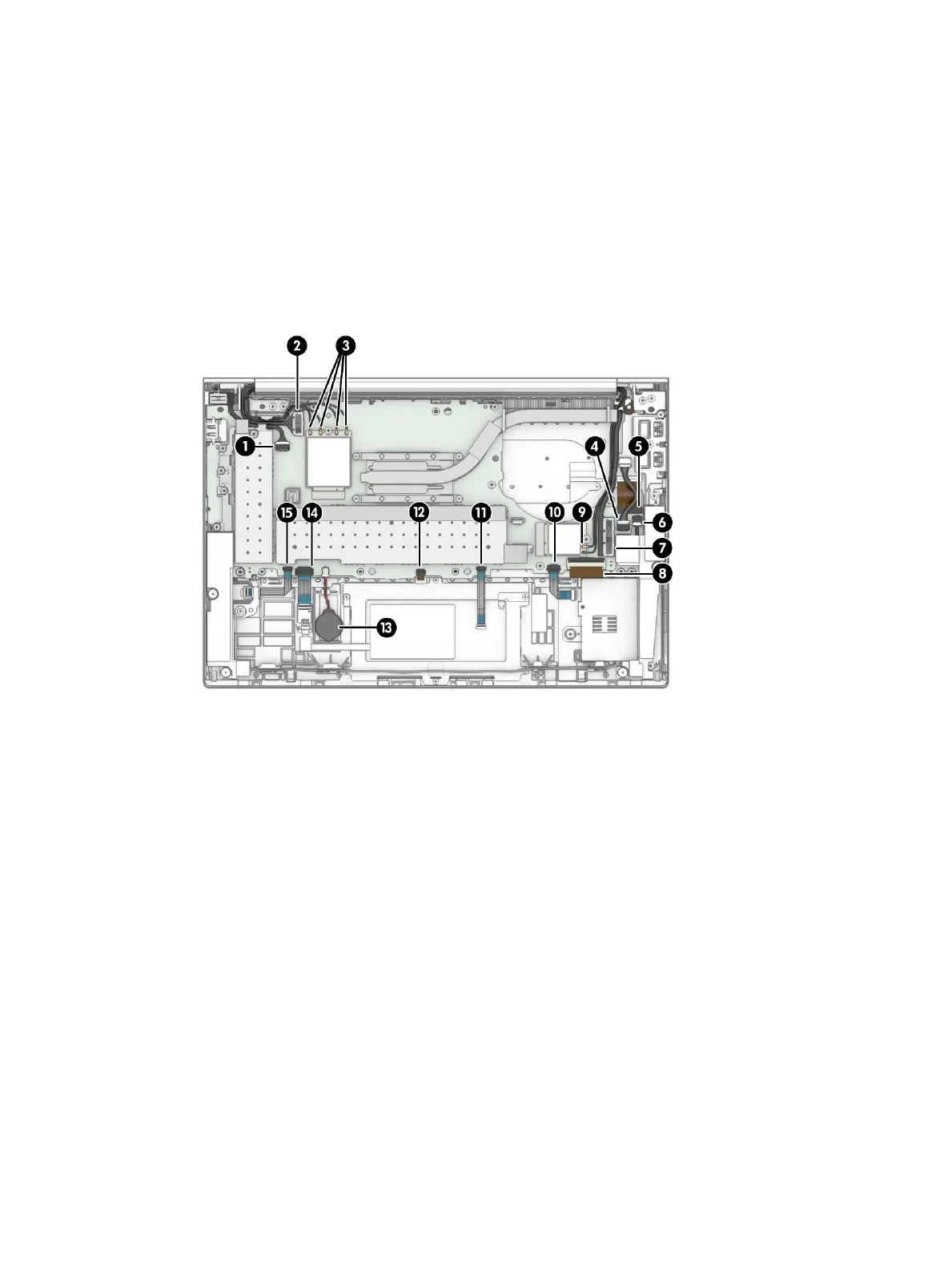

● Antenna cables from the WLAN module (9)
● Card reader cable (ZIF) (10)
● Touchpad cable (ZIF) (11)
● Keyboard backlight cable (ZIF) (select products only) (12)
● RTC battery cable (13)
● NFC module cable (ZIF) (select products only) (14)
● Fingerprint reader cable (ZIF) (select products only) (15)
2. Remove the cables from the clip in the bracket (1).
Component replacement procedures 57
