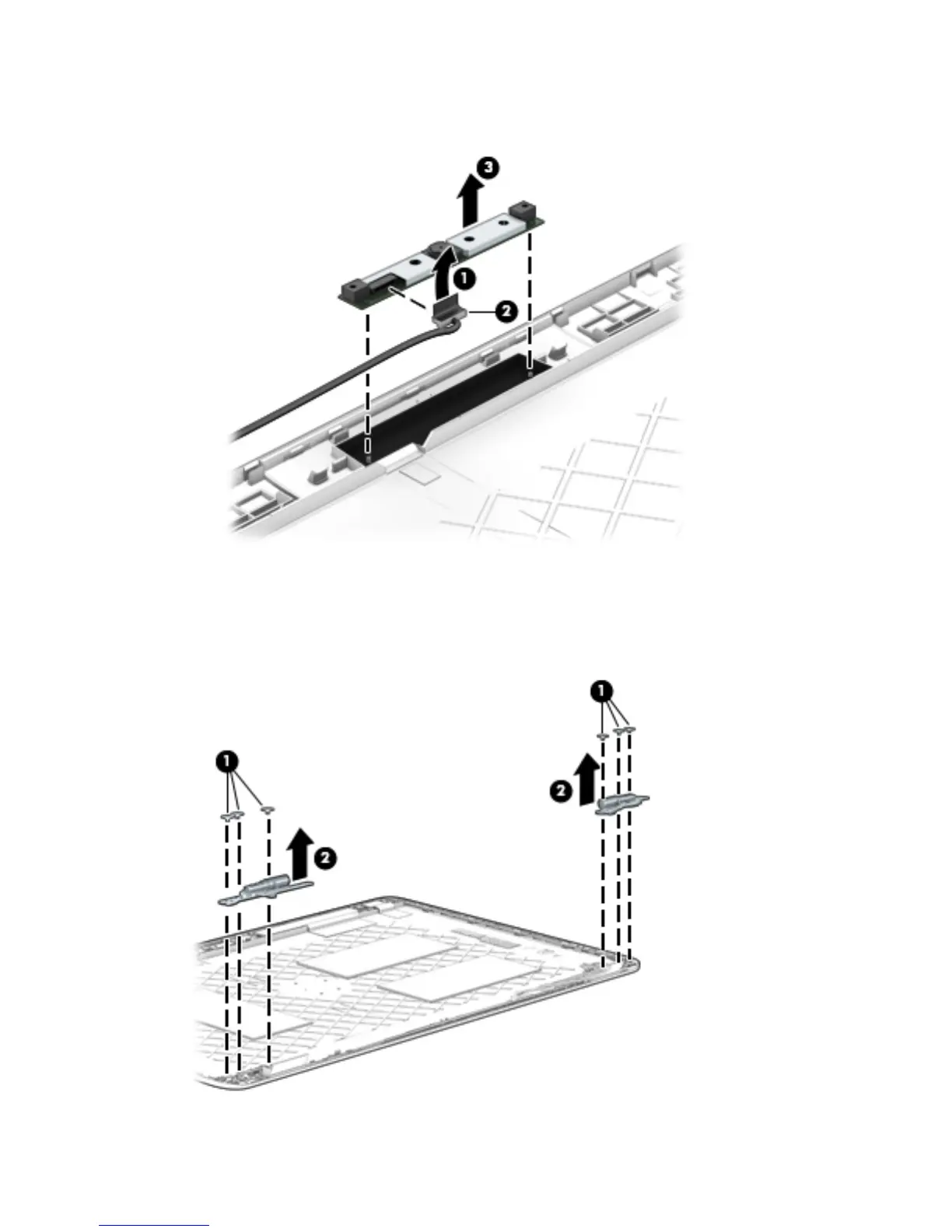

c. Remove the module (3) from the display enclosure. (The module is attached to the display
enclosure with double-sided tape.)
13. If you need to remove the display hinges, remove the six broadhead Phillips PM 2.0×2.0 screws
(1), and then lift the hinges from the display enclosure (2).
Display hinges are available using spare part number 730957-001 for HP EliteBook 840 models,
737660-001 for HP ZBook 14 models, and 730819-001 for HP EliteBook 850 models.
102 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
