2.

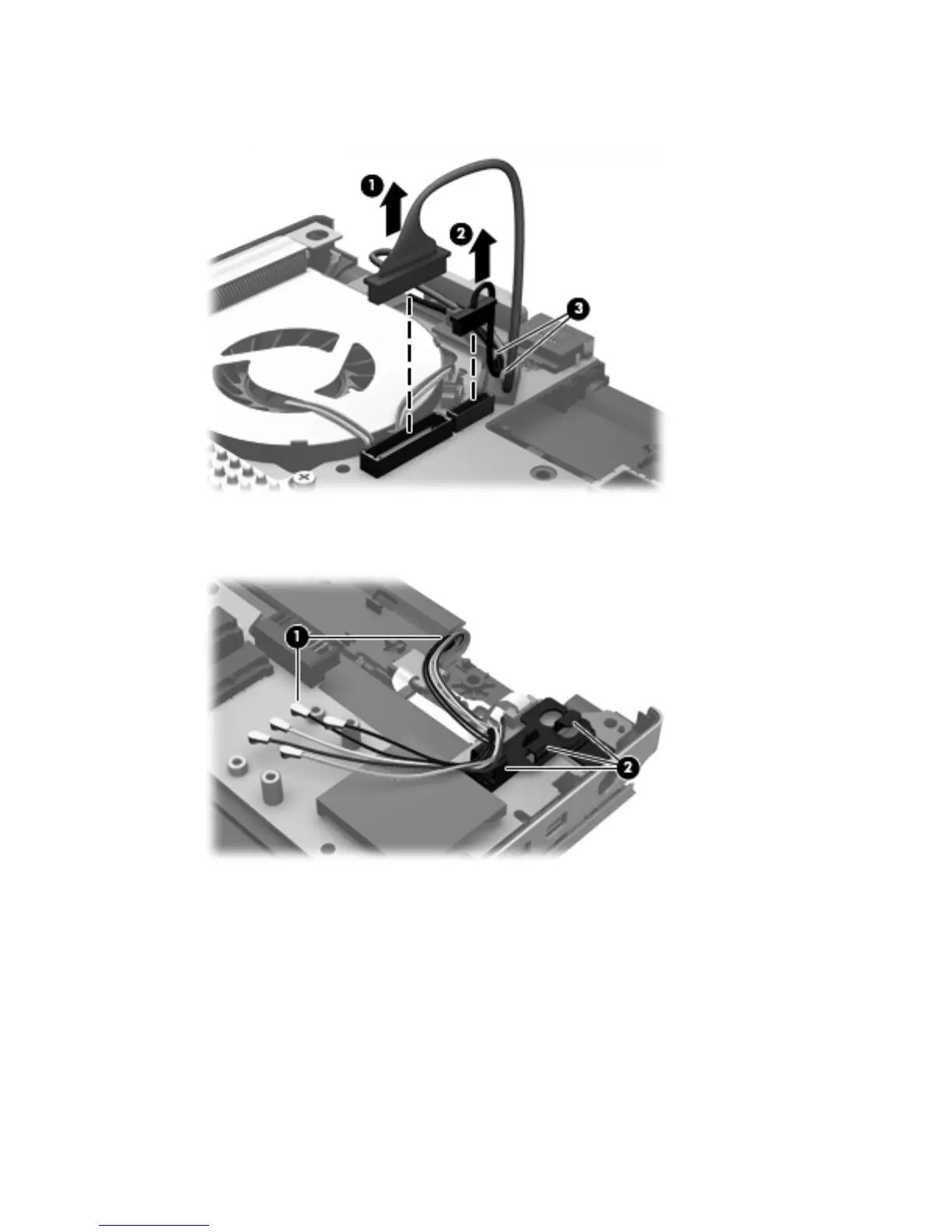

Release the display panel cable and the webcam/microphone module cable from the routing
channel (3) attached to the system board.
3. Release the wireless antenna cables (1) from the routing channel (2) attached to the
system board.
4. Remove the two Phillips PM2.5×4.5 screws (1) that secure the display assembly to the top cover.
5. Swing the display hinges (2) back until the top cover is free for removal.
6. Press the display release latch (3) to release the display assembly from the top cover.
Component replacement procedures
109
