d.

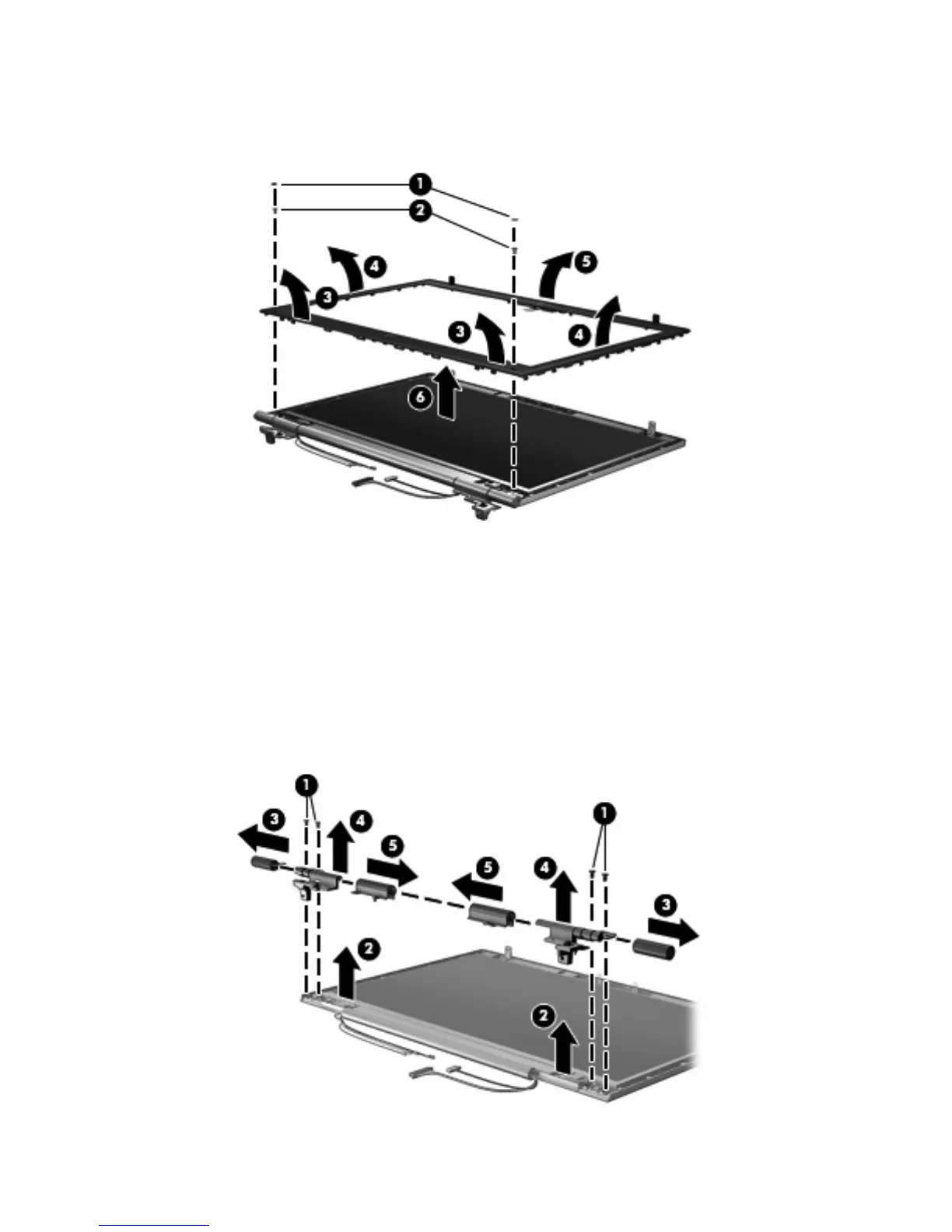

Remove the display bezel (6). The display bezel is available using spare part numbers
686014-001 (for use only on HP EliteBook 8470w Mobile Workstation computer models)
and 686012-001 (for use only on HP ProBook 8470p Notebook PC computer models).
9. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinge assemblies to
the display enclosure.
b.
Remove the display hinge assemblies (2) from the display enclosure.
c.
Remove the display hinge outer cover (3).
d.
Remove the display hinge and inner cover (4) from the display enclosure.
e.
Remove the display hinge outer cover (5) from the hinge.
Component replacement procedures
111
