2.

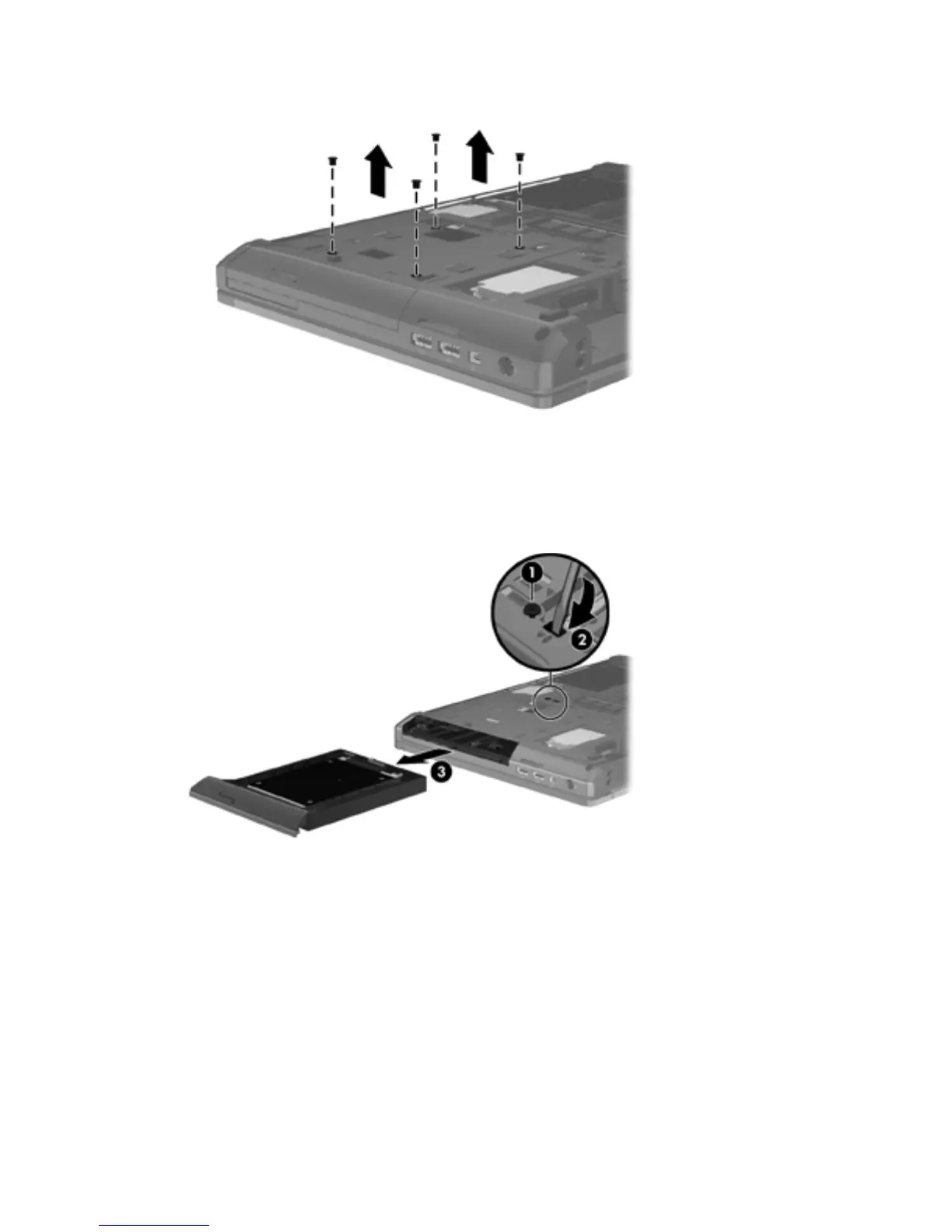

Remove the four Phillips PM2.0×4.0 screws that secure the upgrade bay cradle to the computer.
3.
Loosen the captive Phillips screw that secures the upgrade bay cradle in the upgrade bay (1).
4.
Use a flat-blade screw driver or similar tool to press on the upgrade bay bracket tab (2) to release
the upgrade bay.
5. Remove the upgrade bay (3) from the computer.
Reverse this procedure to install the upgrade bay.
