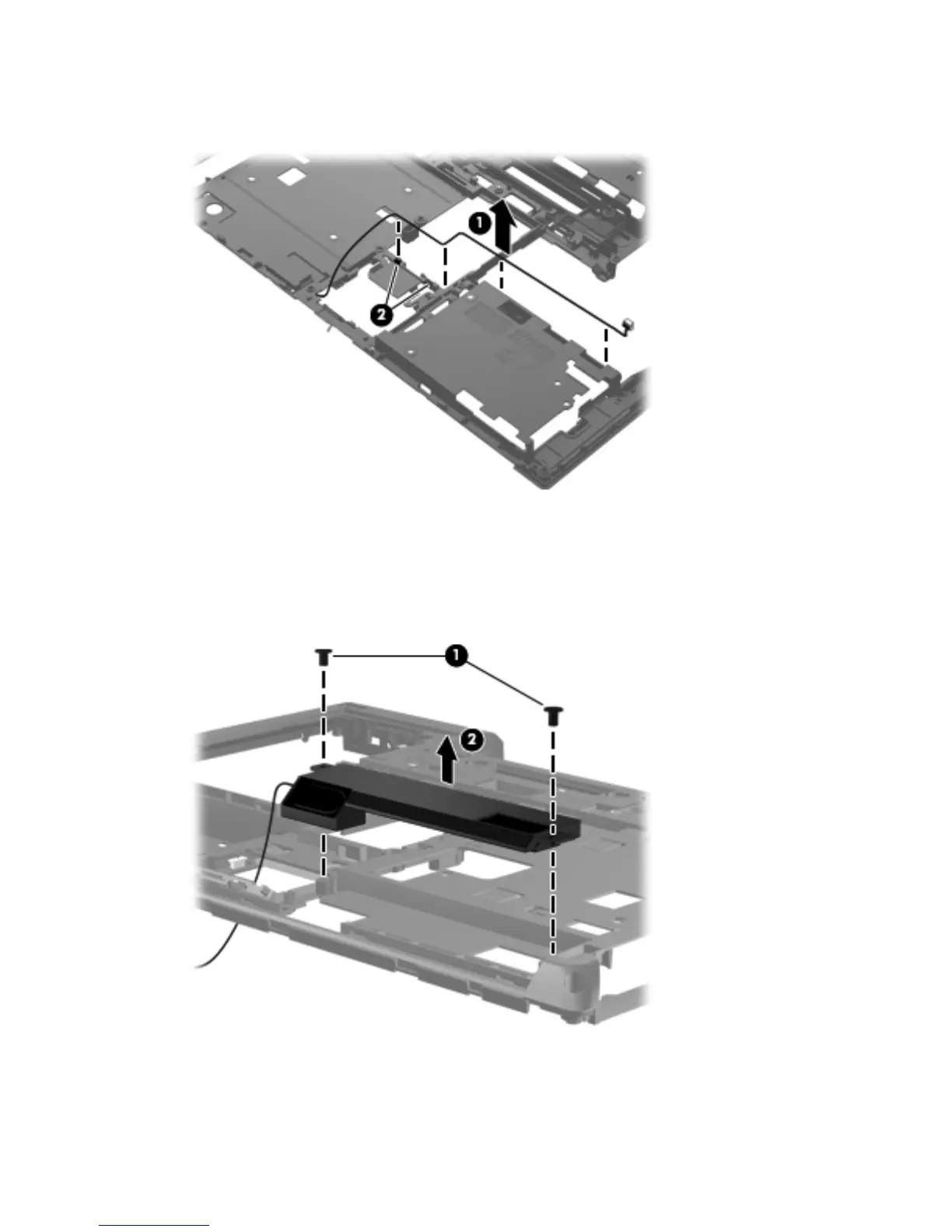

Release the speaker cable (1) from the clips (2) and routing channel built into the base enclosure.
Note that the cable routes from inside the base enclosure to outside the base enclosure.
3.
Turn the base enclosure upside down, with the front toward you.
4. Remove the two Phillips PM2.0×5.0 screws (1) that secure the speaker assembly to the
base enclosure.
5. Remove the speaker assembly (2) from the base enclosure.
Reverse this procedure to install the speaker assembly.
